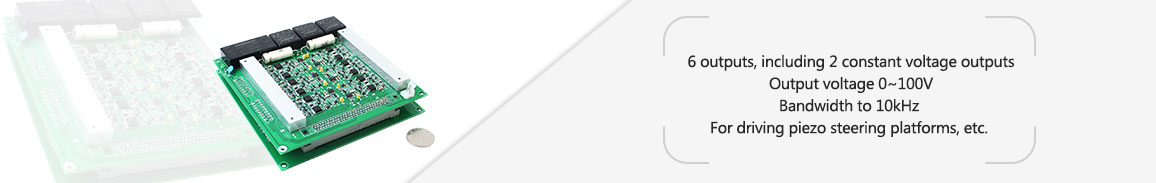

E80.B6S-K board-type piezo controller has 6-channel outputs that contain 2 constant voltage output. It is designed for driving piezo steering mirrors, and can drive CoreMorrow P33.T2S piezo steering platform to operate at ±0.1mrad@100Hz very stably.
Characteristics
|
|
|
|
|
|
|
|
| Technical Data | |
|
Type |
E80.B6S-K |
|
Function |
Board-type controller |
|
Channels |
6, including 2 voltage constant output |
|
Nominal analog input(V) |
0~10 |
|
Nominal output voltage(V) |
0~100 |
|
Input power(W) |
36 |
|
Peak current(A) |
0.9/channel |
|
Ave. current(mA) |
48/channel |
|
Input impedance(kΩ) |
100 |
|
Bandwidth(Hz) |
10k/channel |
|
Ripple, RMS(mV) |
10/channel(2.2μF) |
|
PZT connector |
J30J-15(female) |
|
Control input connector |
J30J-15(female) |
|
Sensor type |
SGS |
|
Sensor output voltage(V) |
0~10(±10 for constant voltage version) |
|
Servo |
P.I |
|
Ripple(mV) |
20 |
|
Operating temperature(°C) |
-40~55 |
|
Overcurrent protection |
有 |
|
Static power dissipation(W) |
11 |
|
Cooling |
Cooling fin |
|
Size L×W×H(mm) |
150×150×40, two layers |
|
Mass(g) |
460 |
|
Power supply |
12V/3A |
|
Power supply port |
Inter-board connector |
|
Control way |
Analog signal control |
