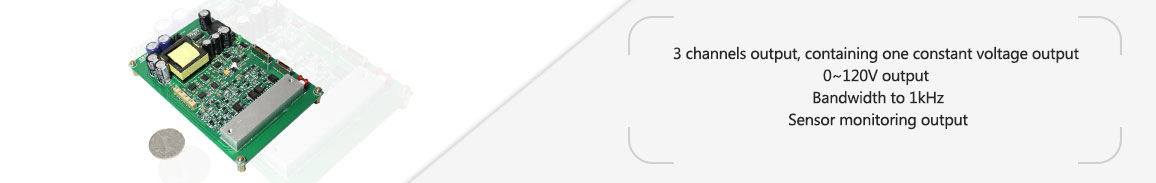

E80.B3K-J Piezo Control Module is a 3 channels output that contains one constant voltage output piezo controller controlled by analog signal. It is equipped with sensor monitoring module.
Characteristics
|
|
|
|
|
|
|
Driving Differential Drive Piezo Scanner
|
Applications
|
|
|
|
| Technical Data | |
|
Type |
E80.B3K-J |
|
Function |
Analog piezo controller |
|
Control way |
Analog input |
|
Drive |
|
|
Channels |
3 |
|
Nominal analog input(V) |
0~10 |
|
Nominal output voltage(V) |
0~120,containing 1 constant voltage output |
|
Peak current(mA) |
185/channel |
|
Ave. Current(mA) |
25/channel |
|
Input power(W) |
15 |
|
Bandwidth(kHz) |
1 |
|
Output ripple(mV) |
5（1.8μF） |
|
Servo Monitor |
|
|
Sensor type |
SGS |
|
Sensor output voltage(V) |
0~10 |
|
Ripple(mV) |
10 |
|
Others |
|
|
Size（mm） |
81×125×30 |
|
Operating temperature(°C) |
0~50 |
|
Input and power connector(PWR&CTL) |
MDC1-21SN |
|
Output connector(PZT&Sensor) |
MDC1-15SN |
|
Over-current protection |
Yes |
|
Mass(g) |
130 |
|
Static power(W) |
3.6 |
|
Heat dissipation |
Natural heat dissipation |
|
Power supply(V DC) |
24
|
