E80.B1S-H Piezo Controller
  • Introduction
  • Feedback

E80.B1S-H Piezo Controller is a one-channel and servo piezo controller, its output voltage is up to -20V to 150V, and the output voltage is controlled by analog input voltage.


Characteristics


 Single channel

 Open-loop/servo control

 Analog signal control

 -20 to 150V output


Principle

E80.B1S-H1 Principle

Panel Introduction

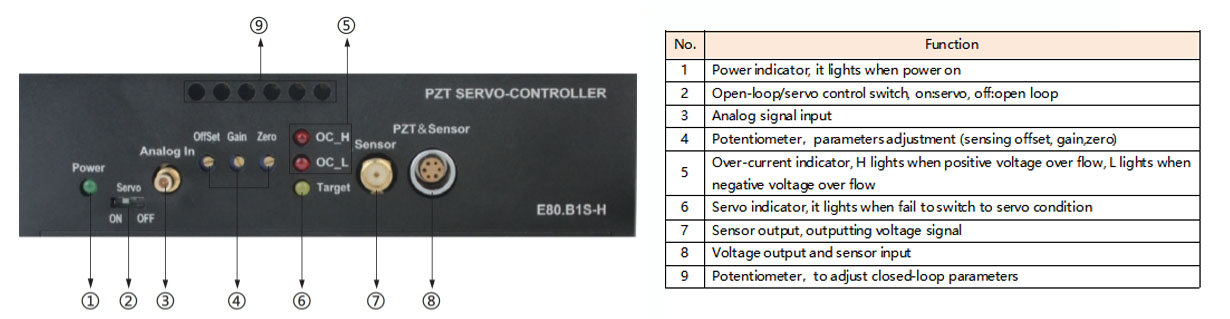

E80.B1S-H1 Panel Introduction
    Technical Data

Type

E80.B1S-H

Function

Piezo controller

Channels

1

Sensor type

SGS

Servo

Analog P-I

Analog input voltage(V)

-1.33 to 10

Output voltage range(V)

-20 to 150

Peak current(mA)

1000

Ave. current(mA)

230

Bandwidth(Hz)

10k

Ripple(mVpp)

10

Proof

Over current

Operating temperature(℃)

-40 to 65

Power supply

24V/5A

Size(mm)

125×110×35

Mass(g)

600

    Drawing （Click on the picture to enlarge it）
Click on the picture to enlarge it
    Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
