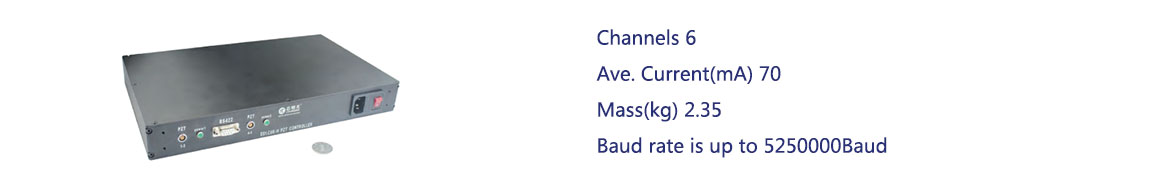

E81.C6K-H Multi-channel Piezo Controller is a digital controller with 6 outputs that can drive 6 piezo actuators at the same time, and its baud rate is up to 5250000Baud.
Characteristics
|
|
|
|
|
|

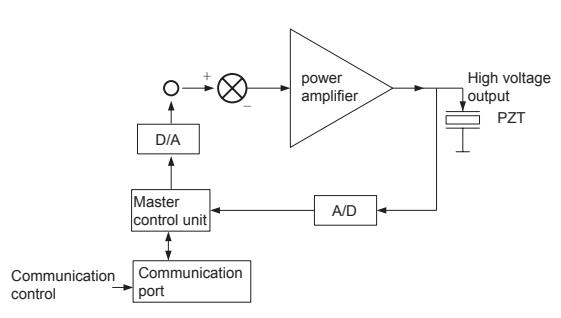

Principle
|

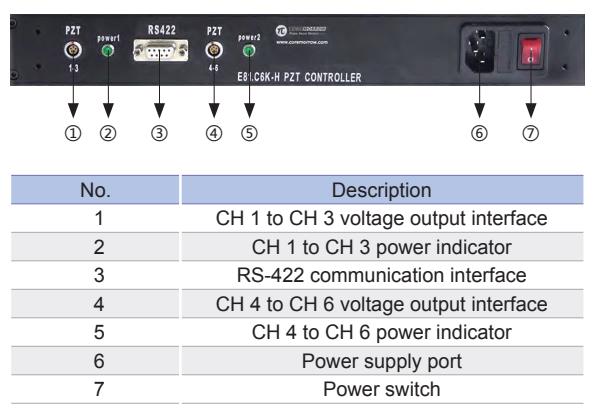

Panel Introduction
|

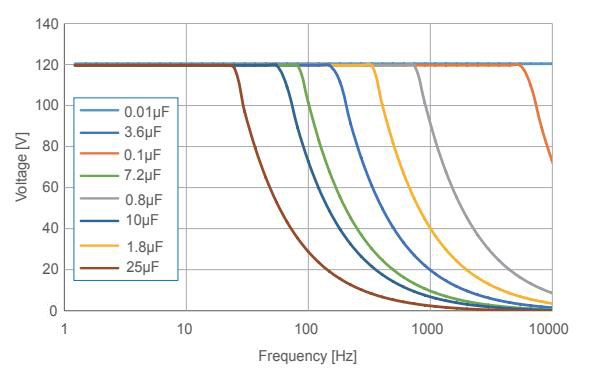

Frequency, Voltage and Load Curve
|
| Technical Data | |
|
Type |
E81.C6K-H |
|
Channels |
6 |
|
Nominal output voltage(V) |
-20~120 |
|
Peak current(mA) |
1000/ channel |
|
Ave. Current(mA) |
70/ channel |
|
Bandwidth(Hz) |
10k/ channel |
|
Ripple(mVpp) |
10/ channel |
|
PZT connector |
EGG.0B.305.CLL |
|
Communication port |
RS-422（D-SUB9） |
|
Band rate |
9600、115200、256000、 |
|
Operating temperature(°C) |
-20~65 |
|
Storage temperature |
-40~70 |
|
Humidity |
Max: 80%, 30°C |
|

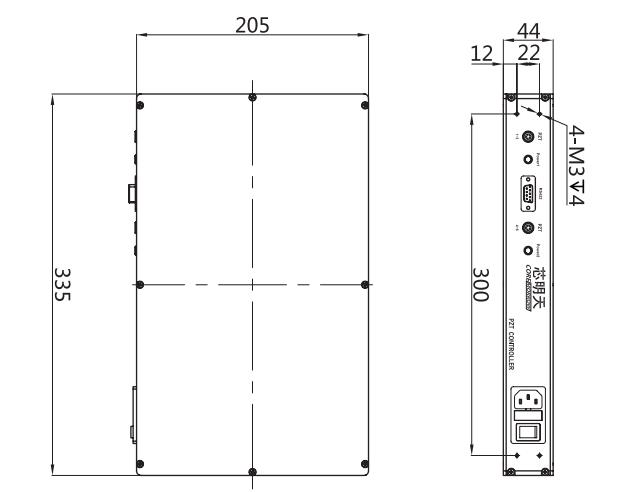

Size(mm) |
335×205×44 |
|
Mass(kg) |
2.35 |
|
Power supply |
220V AC |
|
Power interface |
IEC socket |
