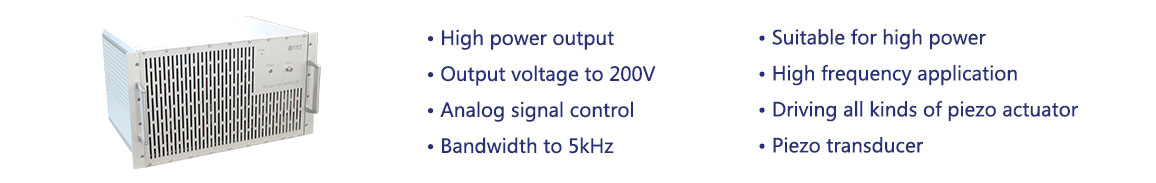

E81.A1K-I Chassis-type Piezo ControllerCurrent Location：Product Homepage >> Integrated piezo controller>>E81.A1K-I Chassis-type Piezo Controller

CoreMorrow E81.A1K-I Piezo Amplifier outputing 200V voltage

Introduction
Feedback

E81.A1K-I Chassis-type Piezo Controller is designed for high power application, and has one output channel, its output voltage can be up to 200V and ave.current up to 5.4A.

Characteristics

High power output

Output voltage to 200V

Analog signal control

Bandwidth to 5kHz

Application

Suitable for high power, high frequency application

Driving piezo stack, piezo actuator, piezo transducer, etc.

Technical Data
Type	E81.A1K-I
Channels	1
Input voltage range（V）	0～10
Output voltage range（V）	0～200
Peak current（A）	>20
Ave. current（A）	5.4（±10%）
Gain	20
Bandwidth（kHz）	5
Ripple（mVpp）	20（loading 2.2μF）
Operating temperature（℃）	0~50
Output short-circuited current（mA）	60
PZT connector	EGG.2B.302.CLL
Analog input connector	BNC-50KY female
Power interface	IPZ-4
Power supply	220VAC
Static dissipation（W）	≤55
Input power（W）	1480

Drawings（Click on the picture to enlarge it）

Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
