E80.B3K-I Multi-channel Piezo Controller is designed for driving piezo steering mirror with 3 channels output that contains one constant voltage output, which is very suitable for differential drive. E80.B3K-I piezo controller has the function of sensor monitor that can output sensor voltage signal that feedbacks the travel of PZT.

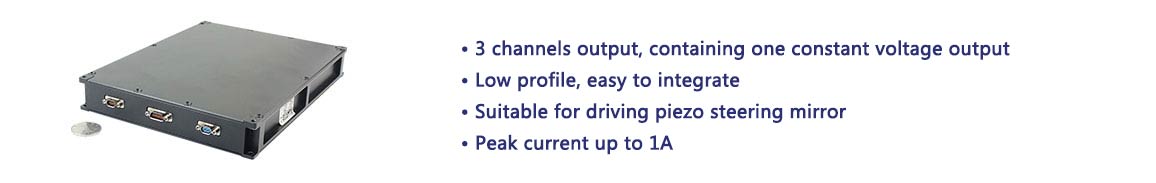

Characteristics
|
|
|
|
|
|
|
|
||
|
|
|||
|

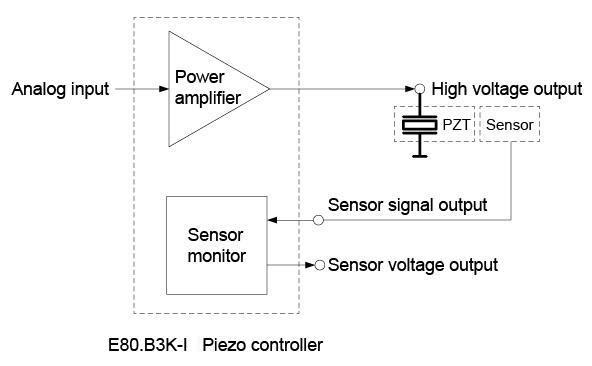

Principle
|
| Technical Data | |
|
Type |
E80.B3K-I |
|
Control way |
Analog input |
|
Channels |
3，with 1 voltage constant output |
|
Nominal analog input(V) |
-0.83~5 |
|
Nominal output voltage(V) |
-20~120, the 3rd channel outputs 120V |
|
Peak current(A) |
1/channel |
|
Ave. Current(mA) |
100/channel |
|
Bandwidth(kHz) |
10 |
|
Output ripple(mV) |
10/channel(2.2μF) |
|
Power supply port |
J30J-9ZKSP |
|
Analog input port |
J30J-9ZJSP |
|
PZT output port |
J30J-15ZKSP |
|
Static power dissipation(W) |
7 |
|
Operating temperature(℃) |
0~70 |
|
Power supply |
28VDC |
|
Size L×H×D(mm) |
167×30×217 |
|
Mass(g) |
1050 |
