E53.C4K-H/E53.C1K-K Compact Piezo Motor ControllerCurrent Location：Product Homepage >> Integrated piezo controller>>E53.C4K-H/E53.C1K-K Compact Piezo Motor Controller
  • Introduction
  • Feedback

Characteristics


 1 or 4 control interfaces

  Open loop

  RS-232, RS-422, TYPE-C

 Windows DLL

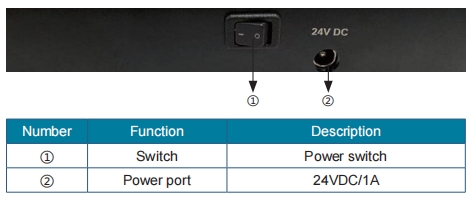

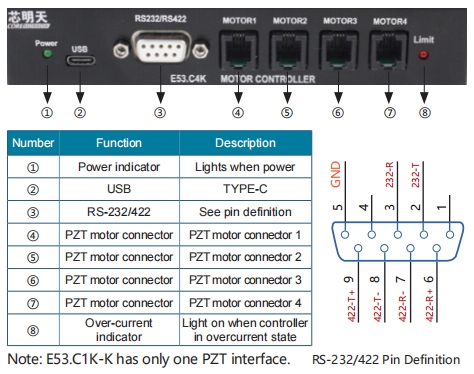

Panel Introduction

Panel Introduction

    Technical Data

Type

E53.C4K-H

E53.C1K-K

Channels

4

1

Power supply

24VDC/1A(20V~30V)

Static power consumption（W）

<5

Processor

32bit 480MHz

D/A converter

16bit

Communication interface

TYPE-C, RS-422, RS-232

Rated output power（W）

9

Operating temperature range（℃）

0~50

PZT connector

RJ11

Communication

DB9、TYPE-C

Size（mm 3 ）

150×80×27.5

Mass（kg）

0.36

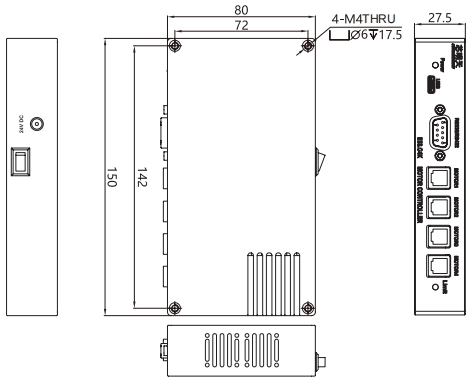

    Drawings（Click on the picture to enlarge it）
    Downloads
Auto CAD PDF
Step
Specs Sheet
Manual



E53.C4K                              E53.C1K-K

Software Manual
