The E80.D12S-I Multi-channel Piezo Controller is designed for driving piezo deflection mirrors. It can drive 4 piezoelectric deflection mirrors at
the same time, with a bandwidth of up to 5kHz. E80.D12S is digitally controlled by the upper computer with servo control function.

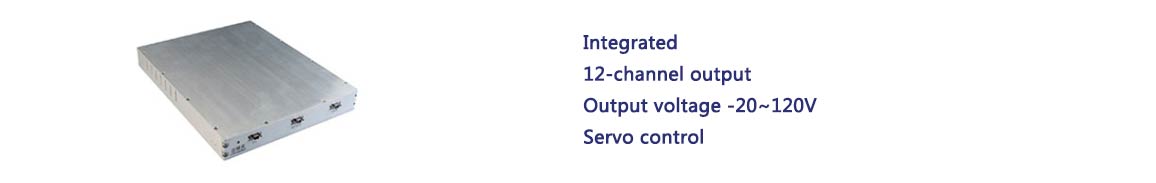

Characteristics
|
|
|
|
|
|
|
|
|
|

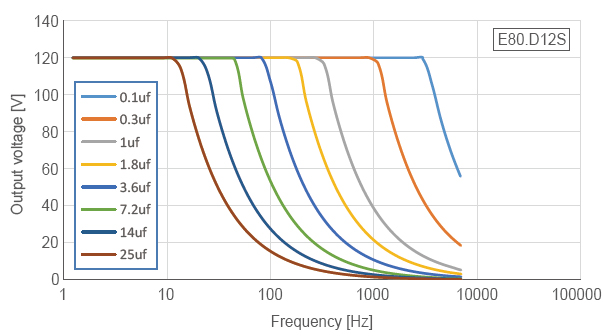

Frequency vs Load Curve
|

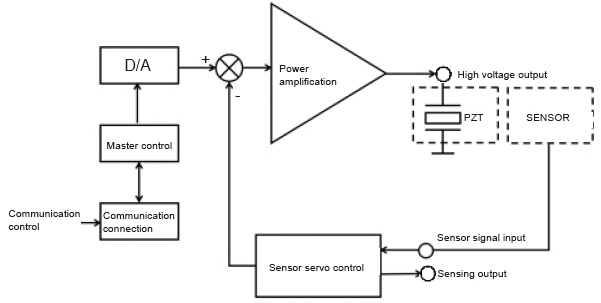

Driving Principle
|

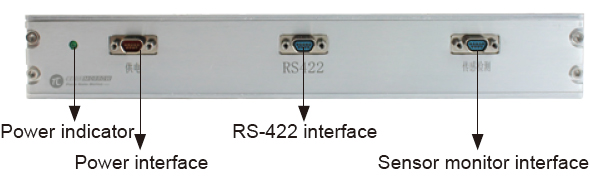

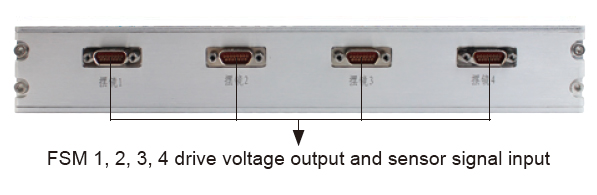

Panel Interface
|
|
|
| Technical data | |
|
Type |
E80.D12S-I |
|
Functions |
Digital integrated controller |
|
Drive |
|
|
Channels |
12 |
|
Nominal output voltage(V) |
-20-120(1~4# the 3rd channel constant voltage output 120V) |
|
Peak current(mA) |
1~3# PZT interface：85 4# PZT interface：1100 |
|
Ave.current(mA) |
1~3# PZT interface：7 4# PZT interface口：74 |
|
Static power(W) |
12 |
|
Bandwidth(Hz) |
1~3# PZT interface：1K/ channel； 4# PZT interface：5K/ channel
|
|
Sensor ripple(mV) |
＜5/channel（2.2μF） |
|
PZT output & sensor input connector |
J30J-15ZKSP |
|
Servo control |
|
|
Sensor type |
SGS/LVDT |
|
Sensor output voltage(V) |
0~10(±10V for constant voltage version) |
|
Servo |
Analog P-I |
|
Output connector |
J30J-9ZKSP |
|
Ripple(mV) |
10 |
|
Master control |
|
|
Communication |
RS-422(J30J-9ZKSP) |
|
Processor |
ARM 32 bit |
|
D/A converter |
16 bit |
|
PC software control function |
Output voltage & displacement, waveform control, setting parameters |
|
PC software waveform control |
Programmable/standard |
|
Secondary development |
VC++, Matlab, LabView , DLL dynamic link library functions, etc. |
|
Others |
|
|
Overcurrent protection |
yes |
|
Cooling |
Shell(can install a cooling fan inside) |
|
Size(mm) |
292×232×35 |
|
Mass(kg) |
1.9 |
|
Supply voltage |
24~30V DC |
|
Power interface |
J30J-9ZJSP |
|
Control mode |
Digital signal control |
|
Humidity |
Max: 80%, 30°C |
|
Operating temperature(°C) |
0~+50 ℃ |
|
Storage temperature(°C) |
–25~+85 ℃ |
