Characteristics

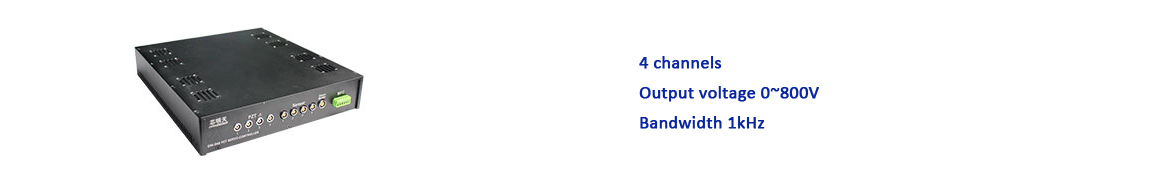

4 channels	Output voltage 0~800V	Peak current up to 100 mA	Bandwidth up to 1kHz
Integrated charge amplifier

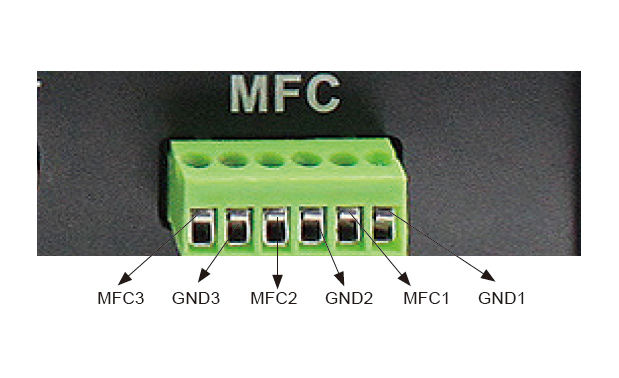

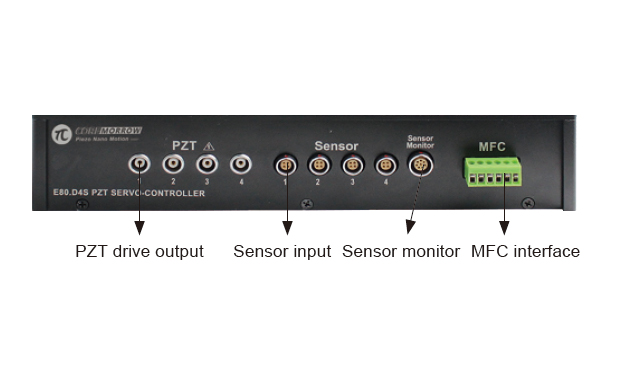

Interface Definition

Technical data
Type	E80.D4S-H
Characteristics	Piezo controller
Drive
Channels	4
Nominal analog input(V)	0~10V
Nominal output voltage(V)	0~800V
Peak current(mA)	100/channel
Ave. current(mA)	20/channel
Bandwidth(Hz)	1k/channel
Ripple(mV)	200mv
PZT connector	ERA.0S.116.CTL
Input connector	USB-B
Servo control
Sensor type	SGS
Servo	Analog P-I
Sensor connector	EPG.0B.304.HLN
Output connector	EPG.0B.308.HLN
Master control
Communication	USB-B
D/A converter	16 bit
A/D converter	16 bit
Others
Operating temperature(°C)	-30~+65
Storage temperature(°C)	–50~+70
Humidity	Max: 80%, 30°C Minimum: 50%, 40°C
Output short-circuited current(mA)	20
Overcurrent indication	No
Static power(W)	74
Dimensions(mm)）	270×245×50
Mass(kg)	1.66
Power supply	28V/10A
Power interface	HT396-2P
