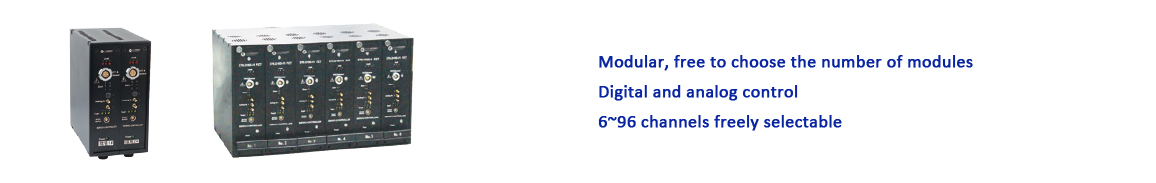

This controller can freely choose the number of cascaded modules according to the user's needs. The number of channels for a single module is 3 channels/module, and up to 32 modules can be cascaded. It can be controlled by external analog signals or digital signals via RS- 422 interface and optional servo control function.
Characteristics
|
|
|
|
Technical data | |
Models |
Modular E70 |
Functions |
Digital and analog piezo controller |
Drive |
|
Channels/module |
3 |
Assemble modules |
2~32 pcs |
Optional channel number |
6/9/12/...96 |
Nominal analog input(V) |
-1.67~10(±10V for constant voltage version) |
Nominal output voltage(V) |
-20~120(Optional -20~100/150) |
Input power(W) |
60/module |
Peak current(A) |
1/channel |
Ave. current(A) |
70/channel |
Bandwidth(Hz) |
10k/channel |
Bandwidth, 1/10(Hz) |
10k |
Bandwidth(-3DB)(Hz) |
37k |
Bandwidth,1/10(-3DB)(Hz) |
54k |
Ripple(mV) |
5/channel(2.2μF) |
PZT and sensor connector |
ECG.2B.312.CLV |
Control input connector |
SMB |
Senvo control |
|
Sensor type |
SGS |
Sensor output voltage(V) |
0~10(±10V for constant voltage version) |
Servo |
P.I+Low pass+Notch filter |
Sensing output connector |
EPG.0B.304.HLN |
Sensor output ripple(mV) |
10 |
Interface |
|
Communication interface |
RS-422(D-SUB 9-hole socket) |
Baud rate |
9600, 38400, 57600, 115200 |
Software Secondary development baud rate |
9600, 19200, 38400, 57600, 76800, 115200, 128000, 230400, 256000 |
Processor |
ARM 32 Bit |
D/A converter |
16bit±10V |
A/D converter |
16bit±10V |
Software function |
Output voltage and displacement, waveform control, setting parameters. |
Waveform |
Programmable/standard |
Secondary development |
VC++, Matlab, LabView, DLL dynamic link library functions, etc., |
Others |
|
Operating temperature(℃) |
0~50 |
Overcurrent protection |
Yes |
Static power(W) |
11/module |
Heat dissipation |
Fan |

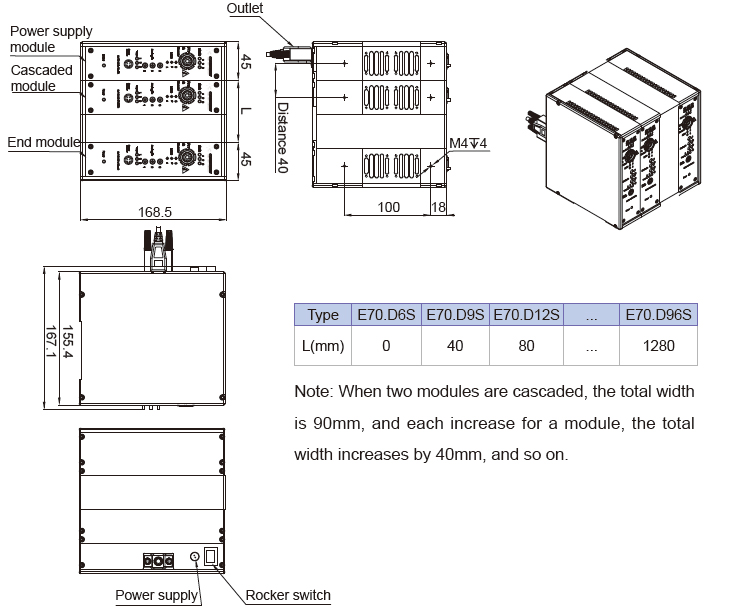

Width(mm) |
No.of modules×40+10 |
Height×depth(mm) |
168.5×155.4 |
Mass(g) |
925/module |
Power supply |
24V DC3A/module |
Power interface |
SF812-S2 |
Control mode |
Analog/digital signal control |
|
|
|
|
|
|
|
