Characteristics
|
|
|
|

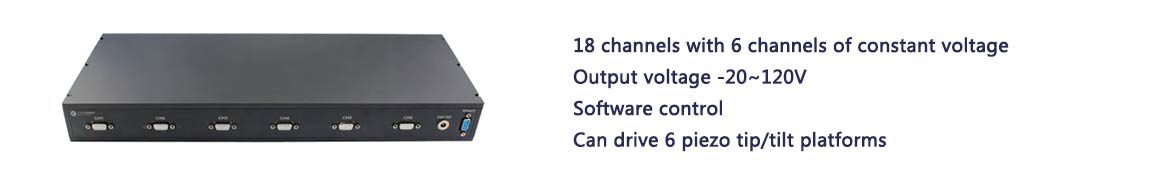

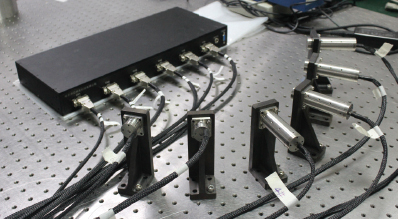

Application-Piezoelectric Deflection System E51.D12S-I1 piezo controller drives six fast steering mirrors. ![]() |
Frequency, Voltage and Load Curves ![]() |
Technical data | |
Models |
E51.D12S-I |
Function |
Analog servo controller |
Control mode |
Digital signal |
Drive |
|
Channels |
18 |
Analog input(V) |
- |
Output voltage(V) |
-20~120 |
Peak current(mA) |
185/channel |
Ave. current(mA) |
25/channel |
Input power(W) |
90 |
Bandwidth(kHz) |
1 |
Output voltage ripple(mV) |
5(1.8μF) |
Sensor |
|
Sensor type |
SGS |
Servo |
Analog P-I |
Others |
|

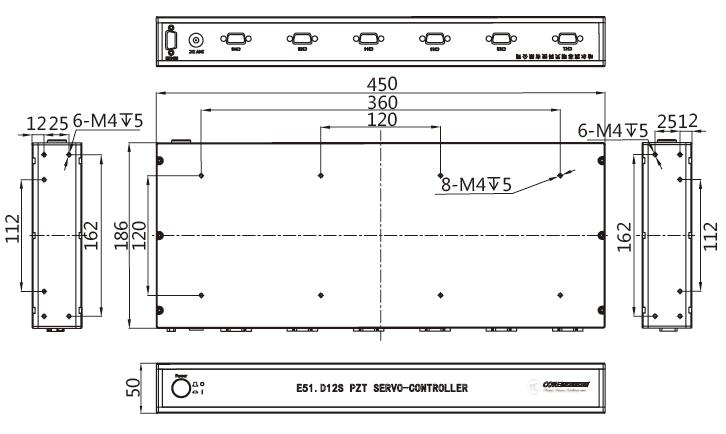

Dimension(mm) |
450×50×186 |
Operating temperature(℃) |
0~50 |
Input connector(PWR&CTL) |
- |
Output connector (PZT&Sensor) |
HDB15(hole) |
Overcurrent protection |
Yes |
Communication interface |
D-SUB 9-hole socket |
Mass(g) |
3600 |
Static power(W) |
21.6 |
Heat dissipation |
Natural heat dissipation |
Power supply(V DC) |
24 |
Communicate interface |
DC-044B-J( φ2.5) |
Communication |
RS-422 |
|
|
