Models

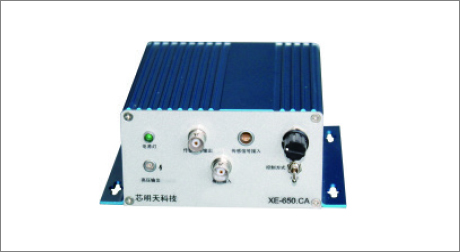

XE-650.CA

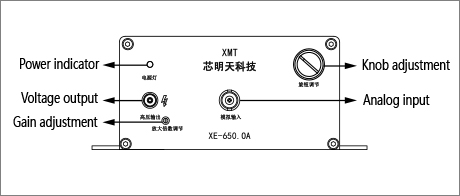

XE-650.OA

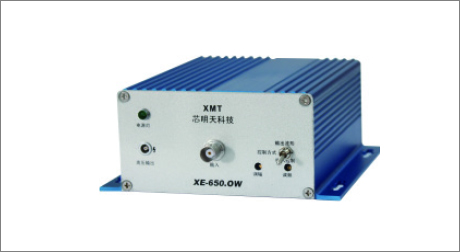

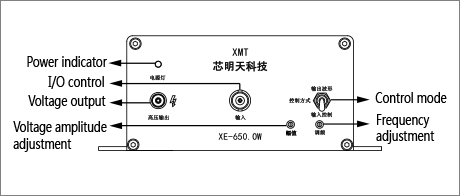

XE-650.OW

E50.S1AL

Function

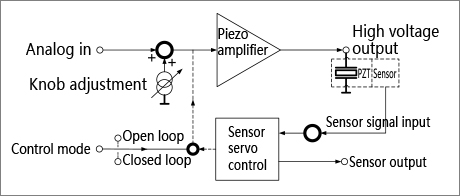

Analog servo controller

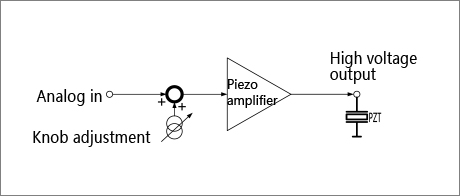

Analog open loop controller

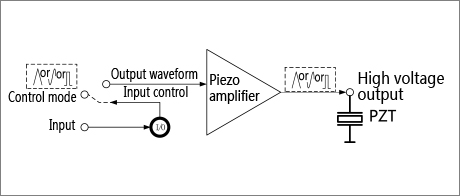

Spontaneous waveform open loop controller

Analog servo controller

Drive

Output channels

1

1

1

1

Control analog input(V)

-0.67~10

-0.67~10

I/O control, 0 or 5

-0.67~10

Output voltage range(V)

-20~120(Optional -20~150)

-20~120(Optional -20~150)

-20~120(Optional -20~150)

(Optional sine wave / square wave / triangle wave )

-20~120

Peak current(mA)

150

150

150

165

Ave.current(mA)

50

50

50

50

Bandwidth(kHz)

1

1

1

8

Output ripple(mVpp)

20

20

20

＜5

PZT output connector

ERA.00.250.CLL

ERA.00.250.CLL

ERA.00.250.CLL

ERA.00.250.CLL

Input connector

BNC-50KY female

BNC-50KY female

BNC-50KY female

BNC-50KY female

Control mode

Analog input, knob adjustment

Analog input, knob adjustment

I/O control

Analog input, knob adjustment

Sensor

Sensor type

SGS

-

-

SGS

Servo characteristics

Analog P-I + Notch filter

-

-

Analog P-I + Notch filter

Sensor input connector

ERA.0S.304.CLL

ERA.0S.304.CLL

ERA.0S.304.CLL

ERA.0S.304.CLL

Sensor monitoring connecto

BNC-50KY female

BNC-50KY female

BNC-50KY female

BNC-50KY female

Others

Operating temperature(°C)

0~50

0~50

0~50

0~50

Size(mm)

L147×H61×D141

L147×H61×D141

L147×H61×D141

L147×H61×D141

Mass(kg)

1.3

1.3

1.2

1.3

Power supply

220VAC 50Hz±10%

220VAC 50Hz±10%

220VAC 50Hz±10%

220VAC 50Hz±10%
