E81.A1K-J Chassis-type Piezo ControllerCurrent Location：Product Homepage >> Integrated piezo controller>>E81.A1K-J Chassis-type Piezo Controller

Introduction
Feedback

E81.A1K-J chassis-type piezo controller is specially developed and designed for high-power applications, with outputting a voltage of up to 800V and a peak current of up to 4.5A.

Characteristics

High power output	1 voltage output channel	Output voltage 0 to 800V	Anglog signal control
Peak current up to 4.5A	Bandwidth(-3dB ) to 15kHz

Applications

Driving various capacitive loads

Driving piezo actuators

Suitable for high power and high bandwidth applications

Driving piezo transducers

Technical Data
Type	E81.A1K-J
Channels	1
Input voltage range(V)	0~10
Output voltage range(V)	0~800V
Peak current(A)	4.5
Ave. current(A)	1
Gain	80
Amplifier -3dB bandwidth(kHz)	15
Ripple(mVpp)	50（2.2μF）
Operating temperature(℃)	0~50
Analog input connector	BNC-50KY female
PZT connector	ZGG.2B.302.CLL
Power supply	220V AC
Power interface	IPZ-4
Static power(W)	120
Size(mm³)	482×266.8×355
Mass(kg)	20.7

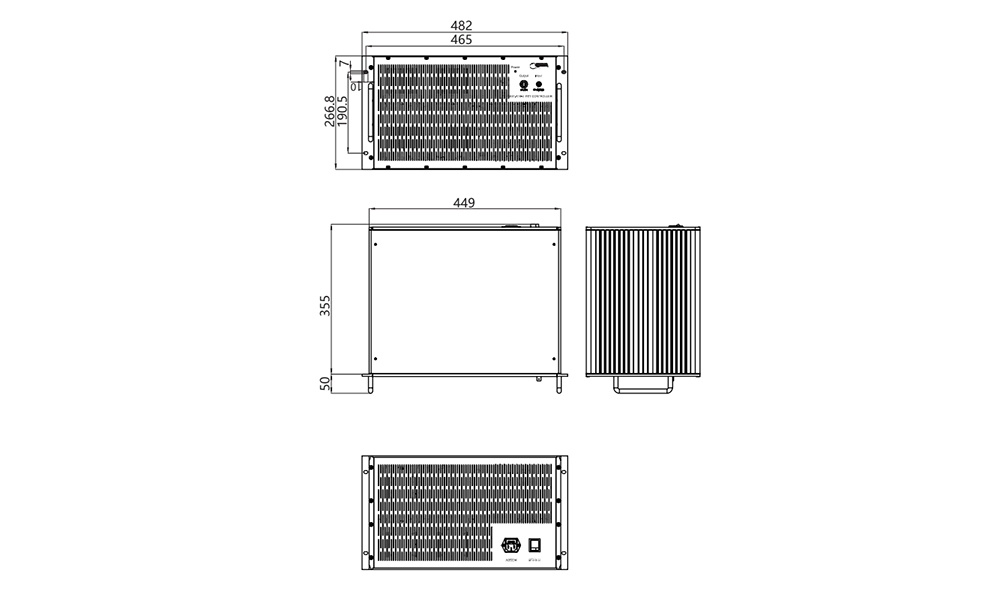

Drawing （Click on the picture to enlarge it）

Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
