E80.D3S-R is a 3-channel piezo controller that can achieve real-time communication with the computer through a LAN network port and support software secondary development. Parameters such as voltage and displacement can be set in software. This controller can meet strict environmental tests such as GJB151B electromagnetic compatibility test (CS101, CS114, CS115, CS116, RE102, RS103), high and low temperature environmental test, mechanical impact test (gravity acceleration 20g), 22.6kPa low-pressure test (absolute value), etc.
Characteristics
|
|
|
|
|
 Digital control
|
|
|
|
|

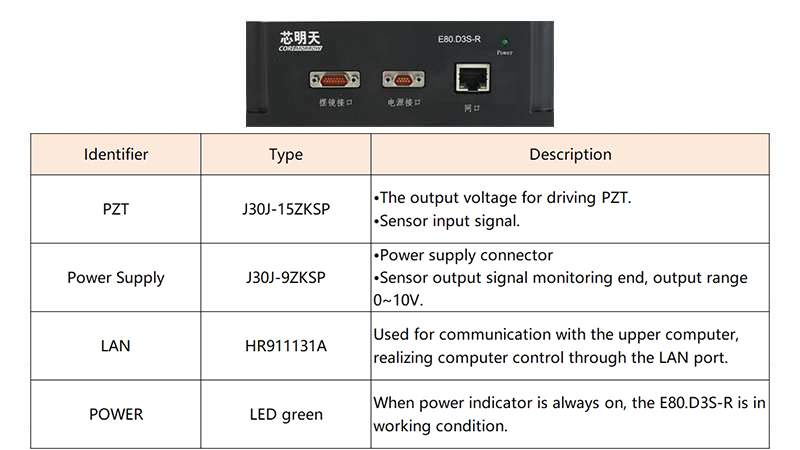

Panel Introduction  |
| Technical Data | |
|
Type |
E80.D3S-R |
|
Function |
Digital controller |
|
Channels |
3 |
|
Nominal output voltage(V) |
0~150 |
|
Peak current(mA) |
1000/channel |
|
Ave. current(mA) |
70/channel |
|
Bandwidth(Hz) |
10k/channel |
|
Ripple(mVpp) |
10/channel |
|
PZT interface |
J30J-15ZKSP |
|
Communication interface |
RJ45 |
|
Communication protocol |
UDP |
|
Sensor type |
SGS |
|
Servo |
Analog P-I |
|
Start-up time |
≤10s |
|
Operating temperature(°C) |
-30~70 |
| Overcurrent protection | Yes |
|
Power supply |
24V 3A |
|
Cooling |
Shell |
|

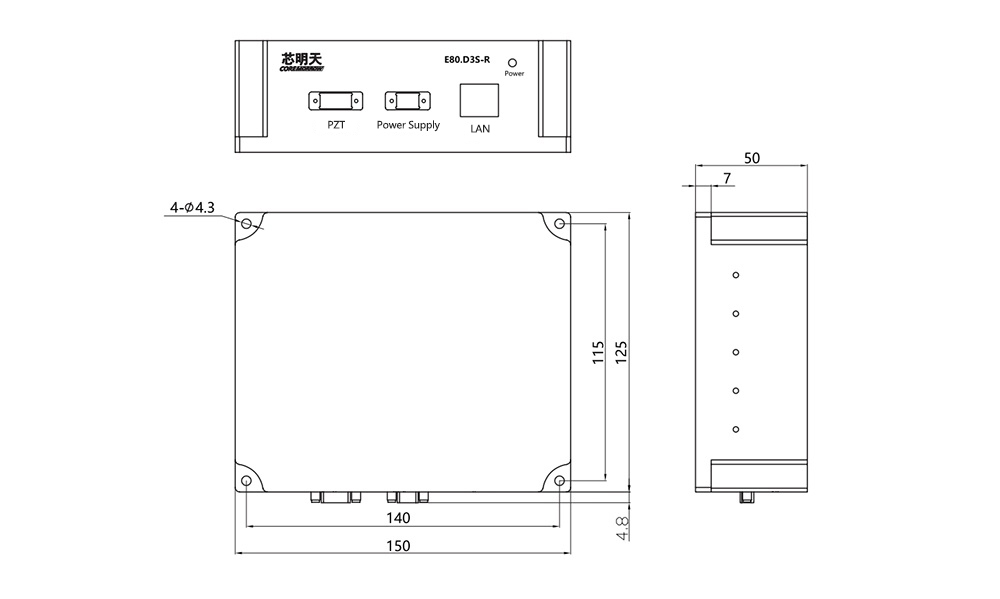

Size(mm) |
150×50×125 |
|
Mass(g) |
1010 |
