E80.A2K-I piezo control module is designed specifically for driving high-voltage piezo actuators, such as driving piezo plate actuators. Its output voltage range can reach up to -500V to +500V, and can be controlled through external analog signals. It has two forms, optional shell or module type.
Characteristics
|
|
|
|
|
 Optional shell or module type
|
|
|
|
| Technical Data | |
|
Type |
E80.A2K-I |
|
Function |
Analog piezo controller |
|
Channels |
2 |
| Nominal analog input(V) | -5~+5 |
|
Nominal output voltage(V) |
-500~+500 |
|
Peak current(mA) |
18/channel |
|
Ave. current(mA) |
5/channel |
|
Bandwidth(-3dB)(Hz) |
2k/channel |
| Operational bandwidth(Hz) |
2.5k@4V
5k@2V
|
|
Ripple(mVpp) |
100/channel(@100nF) |
|
Gain |
100 |
|
Control input connector |
SMB |
|
PZT interface |
ZPL.00.250.NTN |
|
Operating temperature(°C) |
0~50 |
| Overcurrent protection | YES |
|
Output current short-circuit(mA) |
6 |
|
Power supply |
24V DC 2.5A |
|
Static power(W) |
6 |
|

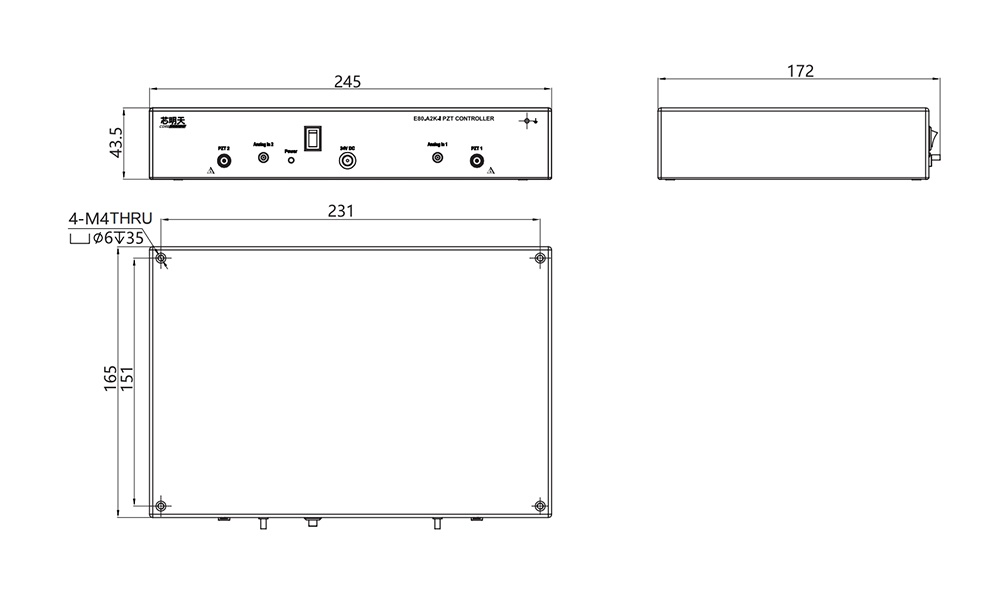

Size（mm3） |
Board type: 220×160×40
Packaged type: 245×43.5×165 |
|
Mass(kg) |
＜1 |
