The E80.D1S-I piezo control module serves as a specialized power supply for driving piezo actuators, etc.. It features both open-loop and closed-loop servo control capabilities. This module is controlled by digital signal via RS-422 port.
Characteristics
|
|
|
|
|
|

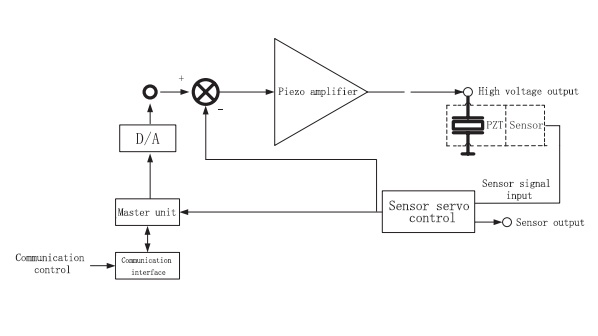

Driving Principle  |

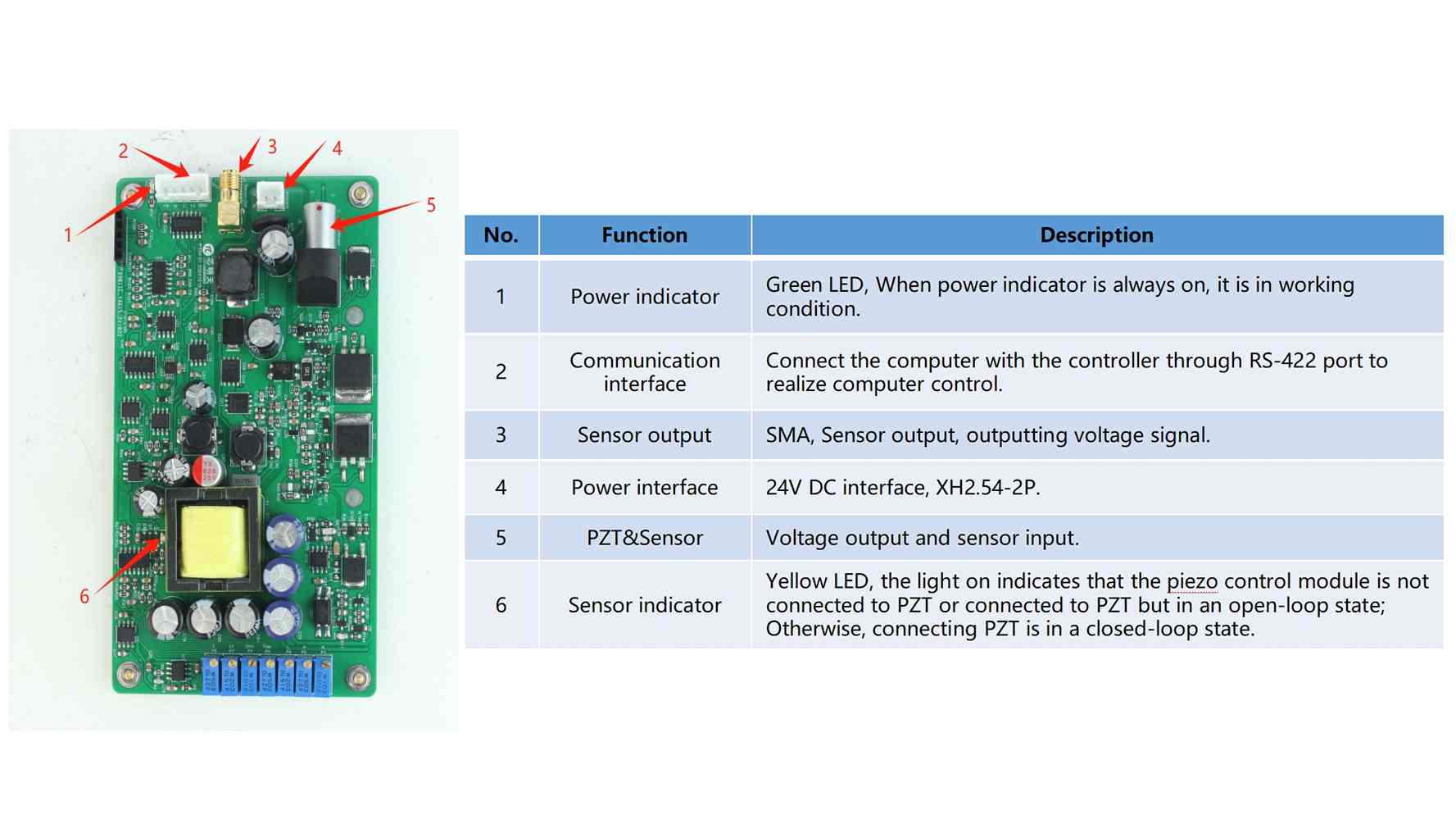

Interface Introduction  |
Interface Introduction  |
|

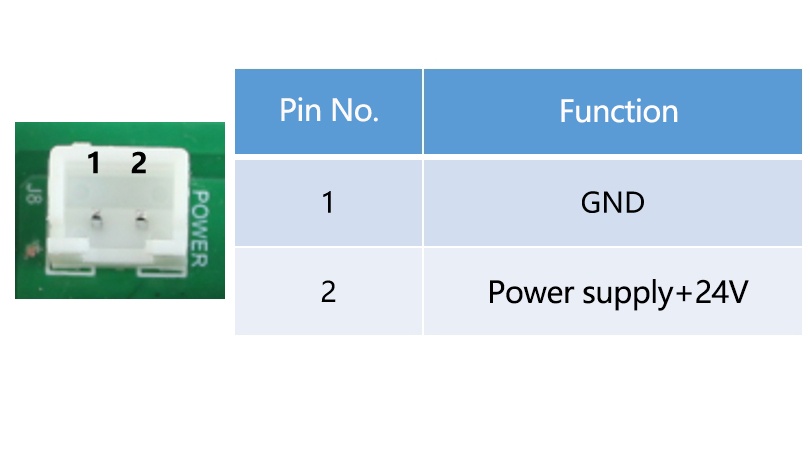

Power interface Pin Definition  |
| Technical Data | |
|
Type |
E80.D1S-I |
|
Function |
Piezo Control Module |
|
Control mode |
Digital Control |
|
Drive |
|
|
Channels |
1 |
|
Nominal output voltage(V) |
-20~120 |
|
Peak current(mA) |
1000 |
|
Ave. current(mA) |
60 |
|
Bandwidth(kHz) |
10k |
|
Output ripple(mV) |
10（2.2μF） |
|
PZT&Sensor connector |
ZPG.0B.306.HLN |
|
Input power(W) |
7 |
|
Servo control |
|
|
Sensor type |
SGS |
|
Sensor output connector |
SMA |
|
Master control |
|
|
Communication |
RS-422 |
|
Communication connector |
XH2.54-5P |
|
Processor |
32bit 168MHz |
|
D/A converter |
16bit |
|
Others |
|
|
Operating temperature(°C) |
0~50 |
|
Over-current protection |
Yes |
|
Output short-circuited current (mA) |
60 |
|
Static power(W) |
5 |
|
Length × depth (mm) |
135×75 |
|
Power supply(V) |
24VDC/1.5A（20~30V） |
|
Mass(g) |
123 |
|
|
