E80.D6S-K Multi-Channel Piezo ControllerCurrent Location:Product Homepage >> Integrated piezo controller>>E80.D6S-K Multi-Channel Piezo Controller
  • Introduction
  • Feedback

       The E80.D6S-K multi-channel piezo controller, featuring six voltage outputs, is able to achieve real-time communication with computer via the RS-422 interface. It supports secondary development of software, allowing for parameter settings such as voltage and displacement through dedicated communication software. This controller is suitable for driving piezo tilt, multi-axis motion products and differential drive applications.




   Characteristic



 voltage output channels

 Analog servo, digital control

 Power supply: 24V 5A

 Support secondary development of software

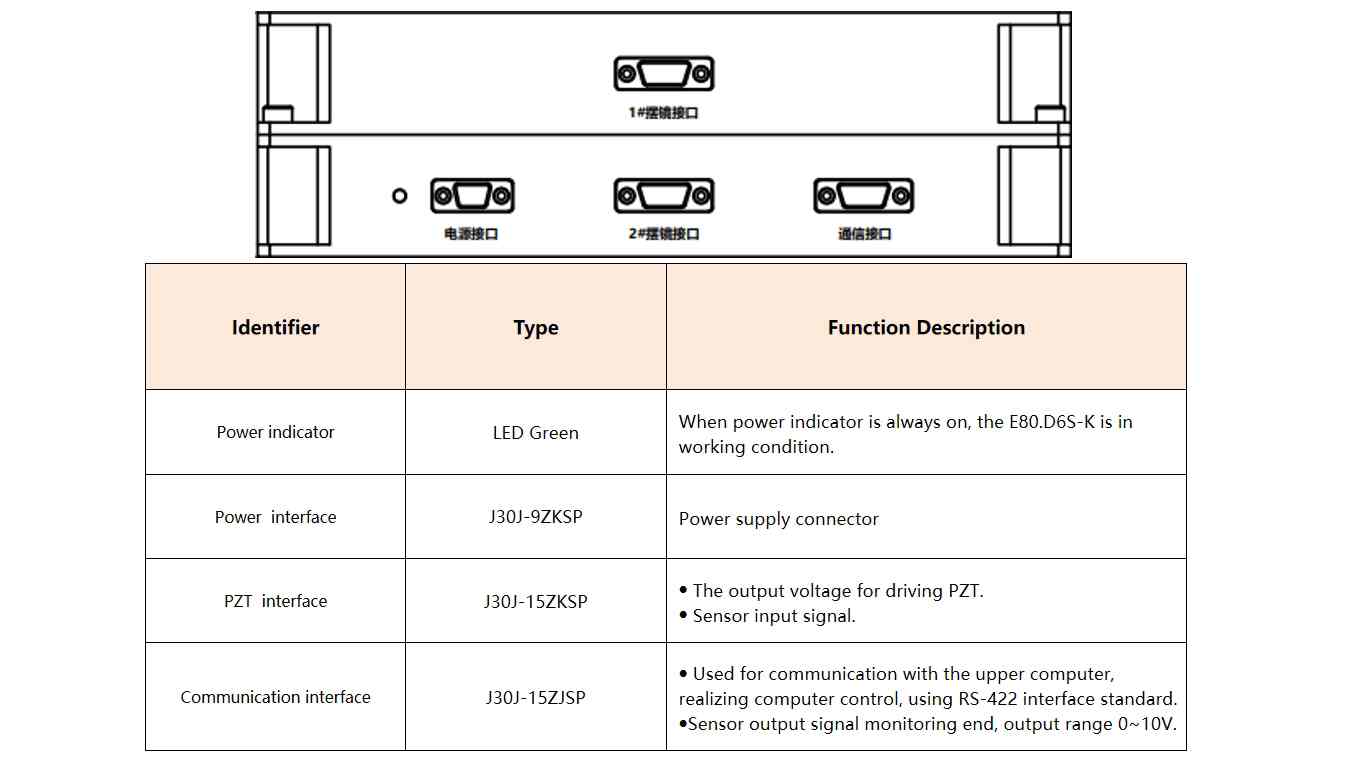

Panel Introduction


   Technical Data

Type

E80.D6S-K

Function

Piezo controller

Channels

6

Nominal output voltage(V)

0~120

Peak current(mA)

1000/channel

Ave. current(mA)

70/channel

Bandwidth(Hz)

10k/channel

Ripple(mV)

10/channel

PZT interface

J30J-15ZKSP

Sensor type

SGS

Servo

Analog P-I

Communication

RS-422

Communication&Sensor interface

J30J-15ZJSP

Baud rate

9600、38400、57600、
115200、460800、691200

Operating temperature(°C)

-40~65

Power supply

24V 5A

Cooling

At the bottom of the shell

Size(mm)

200×125×60

Mass(g)

1270

Control mode

Digital signal control

    Drawing (Click on the picture to enlarge it)
点击图片可放大查看
     Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
