E80.D3S-Q is a digital and analog piezo controller designed for driving Piezo Tip/Tilt Platform with 3 channels output that contains one constant voltage output channel, which is very suitable for differential drive. The controller has the function of sensor monitor that can output sensor voltage signal that feedbacks the travel of PZT, which can achieve high precision control of the platform.
Characteristics
|
|
|
|
|
|

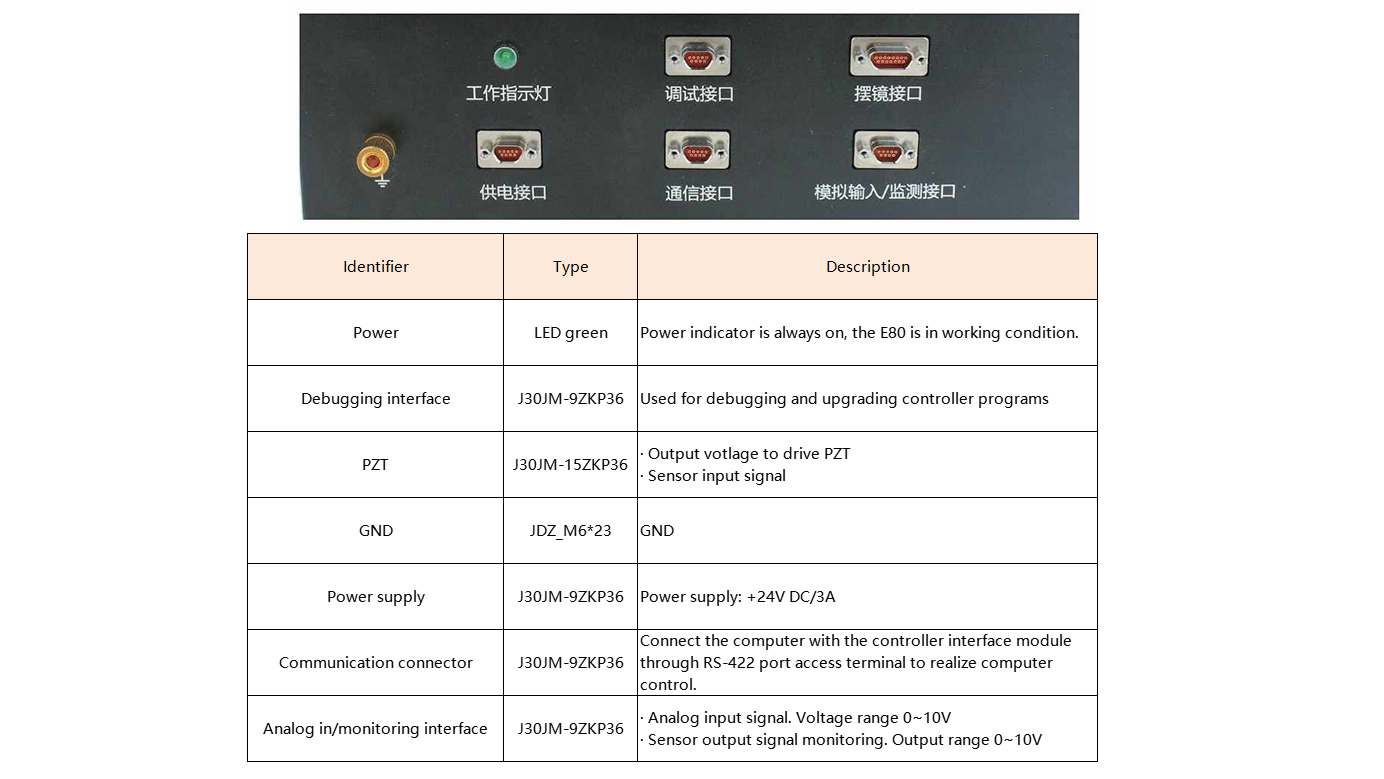

Panel Introduction  |
Panel Introduction  |
| Technical Data | |
|
Type |
E80.D3S-Q |
|
Function |
Digital & analog integrated controller |
|
Channels |
3 |
|
Ananog input(V) |
0~10 |
|
Output voltage(V) |
0~150, the 3rd channel outputs constant voltage |
|
Peak current(A) |
1/channel |
|
Ave.current(mA) |
67/channel |
|
Bandwidth(Hz) |
10k/channel |
|
Ripple(mV) |
10/channel（2.2μF） |
|

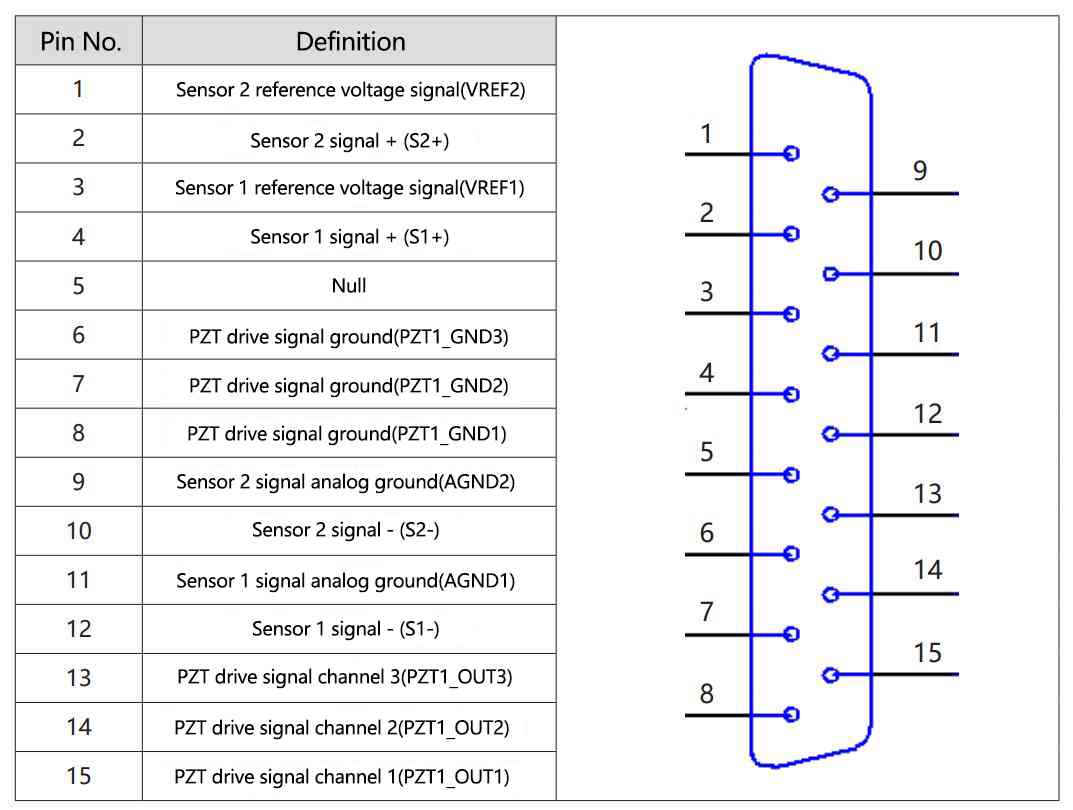

PZT connector |
J30JM-15ZKP36 |
|
Communication connector |
J30JM-9ZKP36 |
|
Sensor type |
SGS |
|
Servo |
P.I+low pass |
|
Communication port |
RS-422（J30JM-9ZKP36） |
|
Debugging interface |
J30JM-9ZKP36 |
|
Analog in/monitoring interface |
J30JM-9ZKP36 |
|
Baud rate |
9600 、57600、115200、256000、460800、576000、691200、1382400 |
|
Processor |
ARM 32 bit |
| D/A converter |
16 bit ±10V |
|
A/D converter |
16 bit ±10V |
|
PC software control function |
Output voltage and displacement, waveform control, setting parameters |
|
PC software waveform control |
Programmable/standard |
|
Secondary development |
VC++, Matlab, LabView, DLL dynamic link
library functions, etc.
|
|
Overcurrent protection |
YES |
|
Operating temperature(°C) |
-40~65 |
|
Static power(W) |
12 |
|
Cooling |
At the bottom of the shell |
|

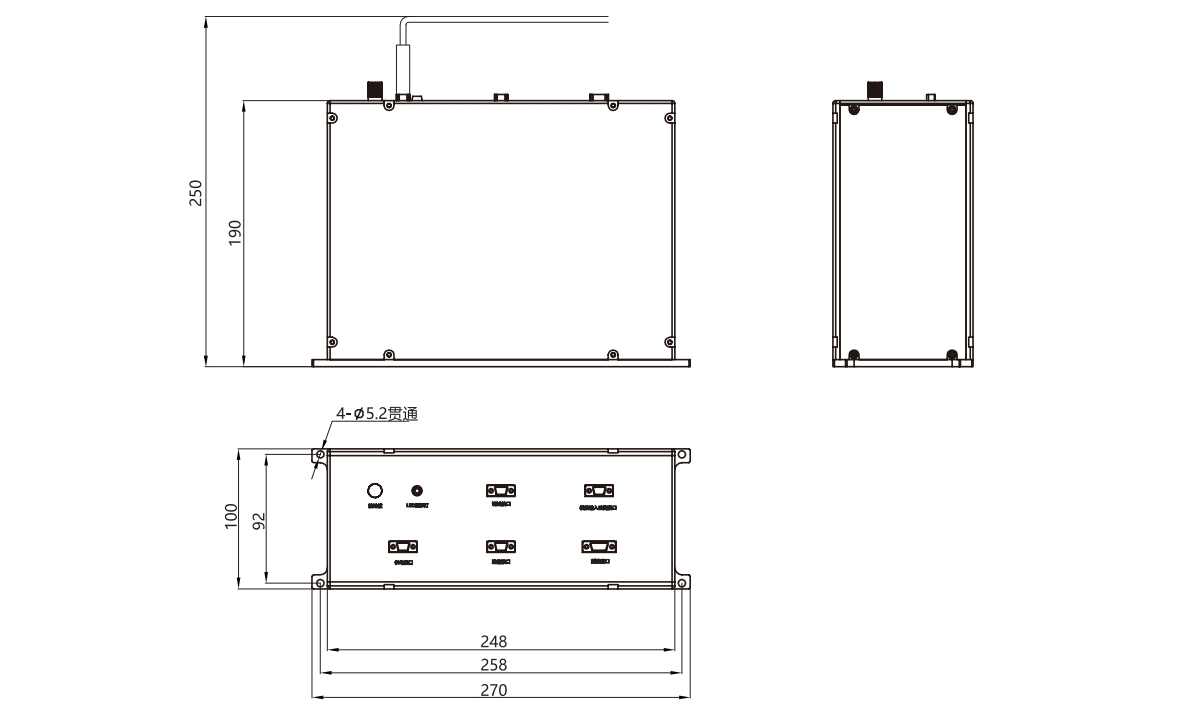

Size(mm) |
248×100×190 |
|
Mass(g) |
3050 |
|
Power supply |
24V DC 3A |
|
Control mode |
Analog/digital signal control |
