E80.D1S-H is a 1-channel analog and digital control piezo controller. It can perform motion control through analog signal input or using upper computer software, supporting secondary development of upper computer software.
Characteristics
|
|
|
|
|
|

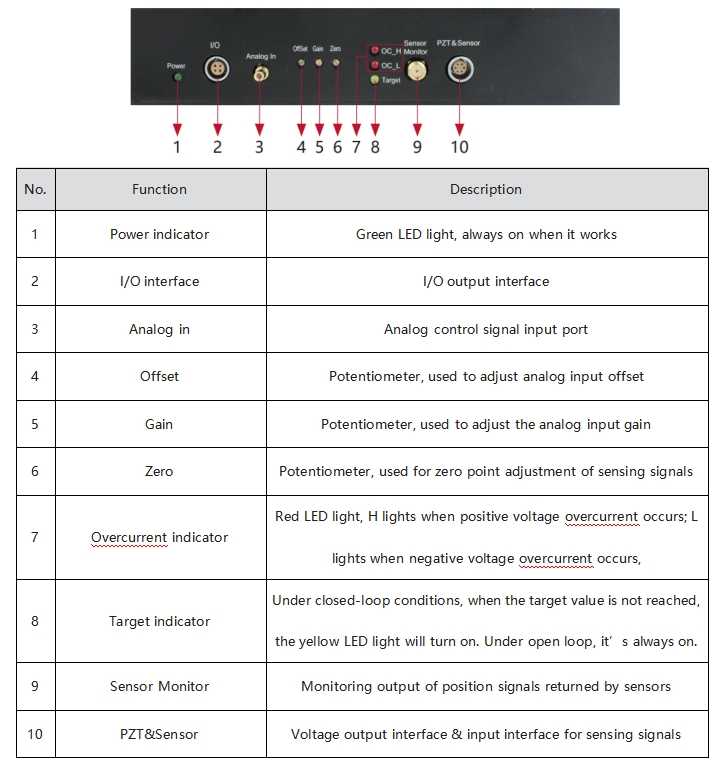

Front Panel
 |

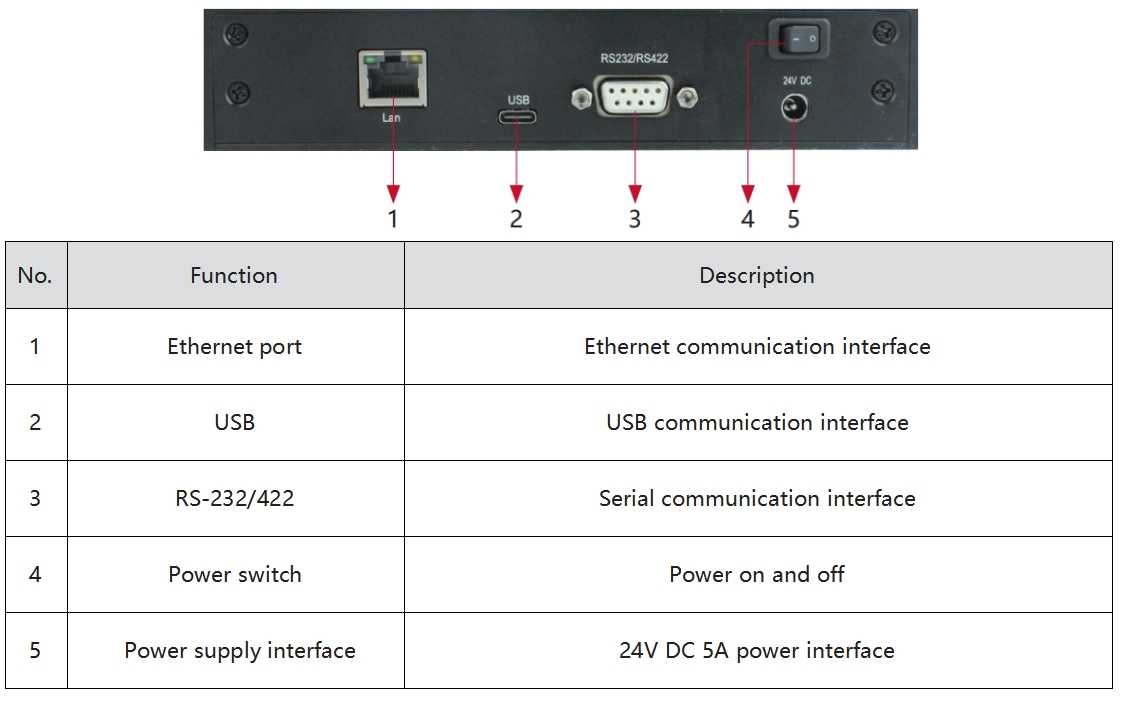

Rear Panel  |

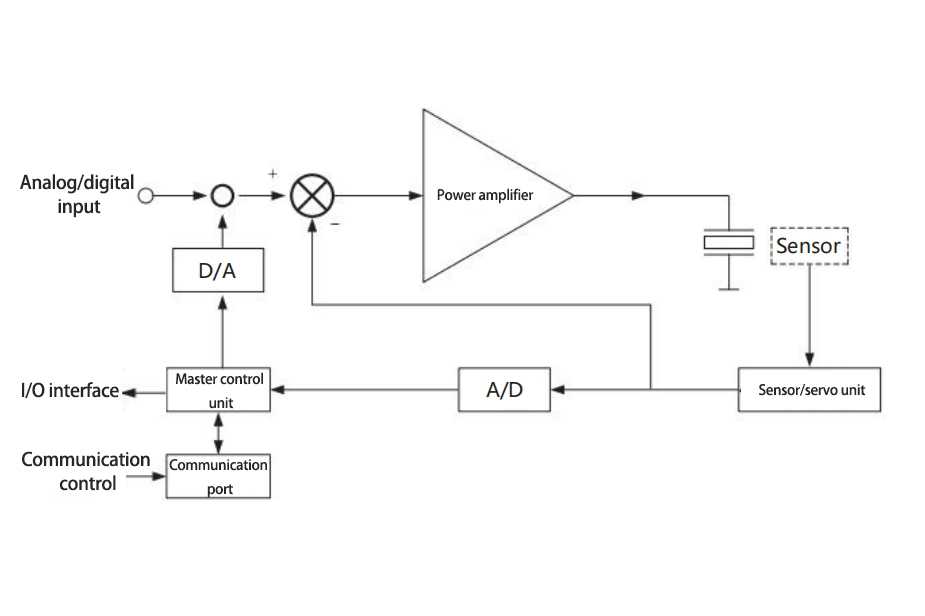

Driving Principle
|
| 技术参数 | |
|
Type |
E80.D1S-H |
|
Function |
Digital&analog piezo controller |
|
Channels |
1 |
|
Nominal analog input(V) |
-1.33~10 |
|
Nominal output voltage(V) |
-20~150 |
|
Peak current(A) |
1/channel |
|
Ave. current(mA) |
230/channel |
|
Bandwidth(Hz) |
10k/channel |
|
Ripple(mV) |
10/channel |
|
Sensor type |
SGS |
|
Servo |
Analog P-I |
|
Over-current protection |
Yes |
|
Operating temperature(°C) |
0~50 |
|
Size(mm) |
177×35×140 |
|
Mass(kg) |
0.83 |
|
Power supply |
24V DC 5A |
|
Control mode |
Dig ital/analog signal control |
