E80.A3K-H Piezo Control ModuleCurrent Location:Product Homepage >> Integrated piezo controller>>E80.A3K-H Piezo Control Module
  • Introduction
  • Feedback

    E80.A3K-H Piezo Control Module is a 3-channel, open-loop version analog control piezo controller with an output voltage range of 0 to 120V, suitable for driving piezo tip/tilt/Z platform.




    Characteristics


 3 output channels

 Board-type

 Output voltage: 0~120V

 Analog control

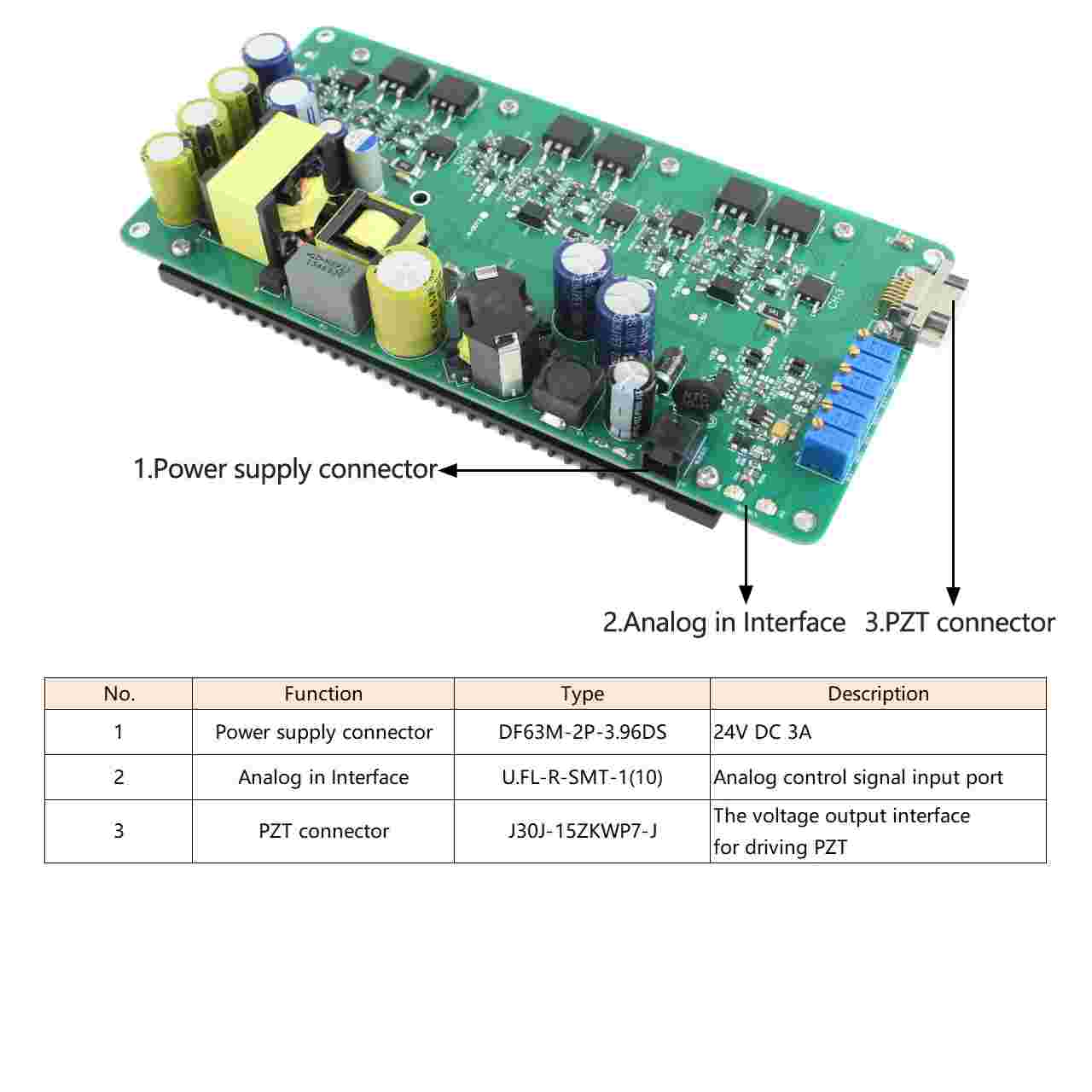

Panel Introduction

    Technical Data

Type

E80.A3K-H

Channels

3

Nominal analog input(V)

0~10

Nominal output voltage(V)

0~120

Peak current(A)

1/channel

Ave. current(mA)

60/channel

Bandwidth(Hz)

10k/channel

Ripple(mV)

10/channel

Over-current protection

Yes

Operating temperature(°C)

-40~65

Power supply

24V DC 3A

Size(mm)

90×180×30

Mass(g)

330

Control mode

Analog signal

    Drawing (Click on the picture to enlarge it)
点击图片可放大查看
    Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
