E70.B2S-H Multi-channel Piezo ControllerCurrent Location:Product Homepage >> Integrated piezo controller>>E70.B2S-H Multi-channel Piezo Controller
  • Introduction
  • Feedback

    E70.B2S-H Multi-channel Piezo Controller is a two-channel analog piezo controller.



Characteristics


 2 output channels

 Analog control

 Output voltage: 0~120V/150V

 DC24V 3A DC power supply

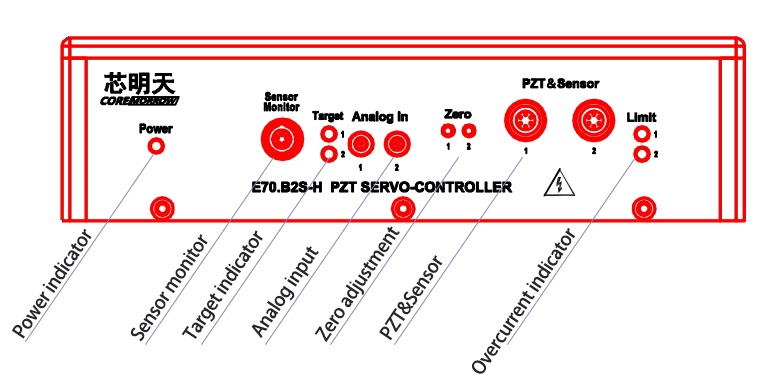

Front panel

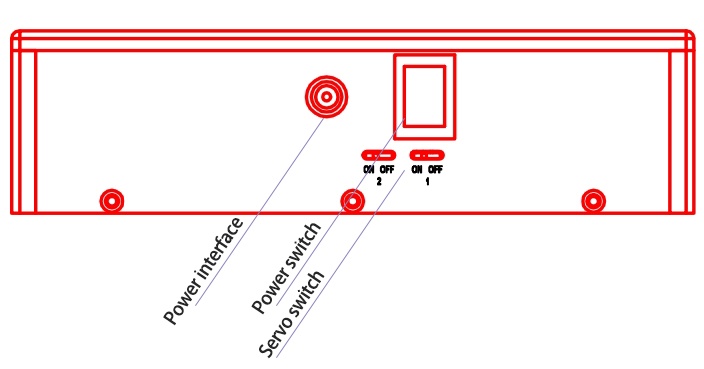

Rear panel

    Technical Data

Type

E70.B2S-H

Functions

Analog piezo controller

Channels

2

Nominal analog input(V)

0~10

Nominal output voltage(V)

0~120(Optional 0~150)

Input power(W)

56

Peak current(A)

1.1/channel

Ave. current(mA)

70/channel

Bandwidth(Hz)

10k/channel

Ripple(mV)

5/channel(2.2μF)

PZT and sensor connector

ZCG.0B.306.CLLV

Control input connector

SMB

Sensor type

SGS

Servo

P.I+Low pass+Notch filter

Sensor output connector

 ZPG.0S.303.HLN

Sensor output voltage(V)

0~10

Sensor output ripple(mV)

10

Operating temperature(°C)

0~50

Over-current protection

Yes

Static power(W)

11

Cooling method

Fan

Size(mm)

147×170×45.5

Mass(kg)

1.05

Power supply

24V DC3A, DC-022B (ø2.5)

Control way

Analog signal

    Drawing (Click on the picture to enlarge it)
Click on the picture to enlarge it
     Downloads
Auto CAD PDF
Step
Specs Sheet
Manual

Software Manual
