E80.C1K-H Miniature Piezo Control ModuleCurrent Location:Product Homepage >> Integrated piezo controller>>E80.C1K-H Miniature Piezo Control Module
  • Introduction
  • Feedback

    E80.C1K-H is a 1-channel, open-loop digital control piezo controller with an output voltage range of 0 to 120V, suitable for driving piezo phase shifter.


Characteristics


 1 output channel

  Board-type

 Output voltage: 0~120V

 Software control

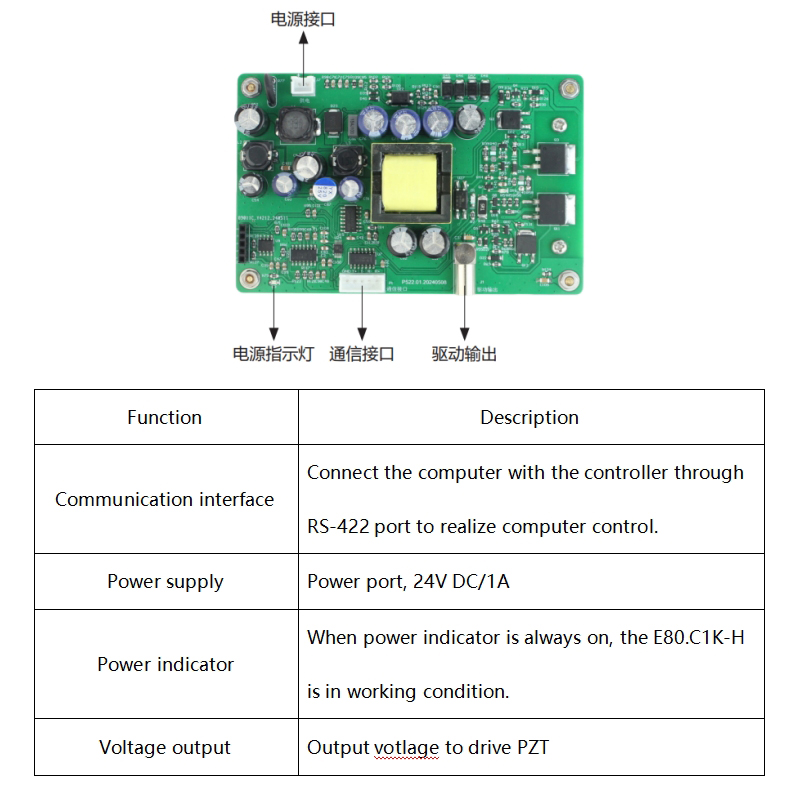

Interface Introduction

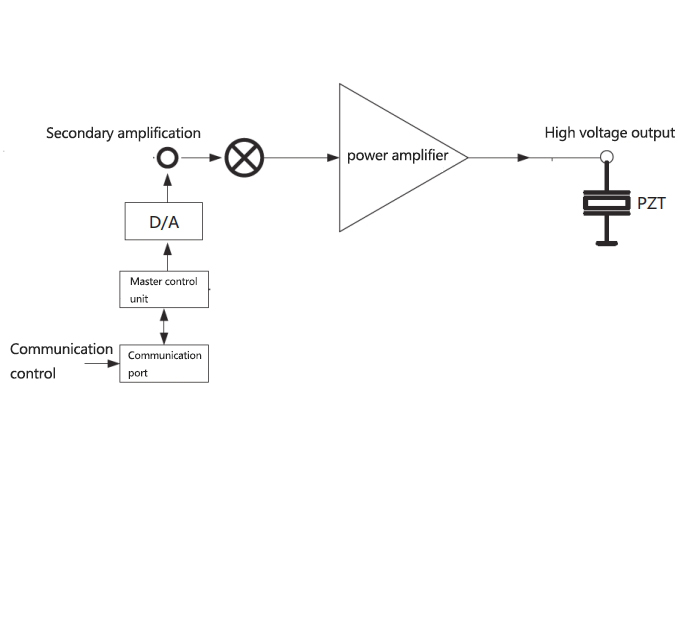

Driving Principle


    Technical Data

Type

E80.C1K-H

Function

Digital Controller

Channels

1

Nominal Output voltage(V)

0~120

Peak current(A)

1

Ave. current(mA)

60

Bandwidth(kHz)

10K

Ripple(mVpp)

10(load 2.2μF)

PZT connector

LEMO ERA.00.250.CTL

Communication connector

XH2.54-5P

Communication interface

RS-422

Processor

32bit 168MHz

D/A converter

16bit

Operating temperature(°C)

0~50

Output short-circuited current (mA)

60

Static power(W)

5

Mass(g)

116

Power supply(V)

24V DC/1A(20V~30V)

     Drawing (Click on the picture to enlarge it)
暂无
   Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
