E80.A4K-J Multi-channel Piezo Controller is a 4-channel, open-loop analog control piezo controller with an output voltage range of 0 to 150V.
Characteristics
|
|
|
|
|
4 output channels|

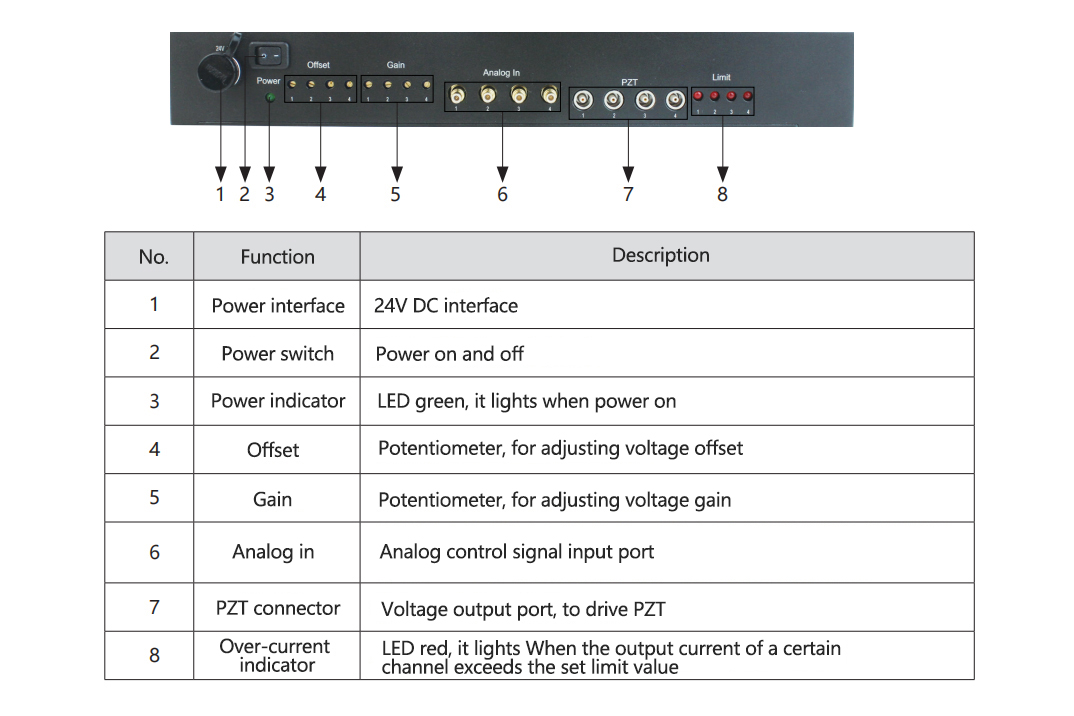

Panel Introduction
|
| 技术参数 | |
|
Type |
E80.A4K-J |
|
Channels |
4 |
|
Nominal analog input(V) |
0~10 |
|
Nominal output voltage(V) |
0~150 |
|
Peak current(A) |
1/channel |
|
Ave. current(mA) |
230/channel |
|
Bandwidth(Hz) |
10k/channel |
|
Ripple(mV) |
10/channel |
|
Over-current protection |
Yes |
|
Operating temperature(°C) |
-40~65 |
|
Power supply |
24V DC 15A |
|
Size(mm) |
250×220×35 |
|
Mass(kg) |
1.76 |
|
Control mode |
Analog signal control |
