        E80.D3S-K Multi-channel Piezo Controller is a digital controller for driving piezo tip/tilt platform, features 3 outputs, and the third channel is constant voltage output that is suitable for differential drive.




Characteristics


 3-channel piezo controller

 Analog servo control, digital control

 Power supply 20~30V DC

 Suitable for driving PDM

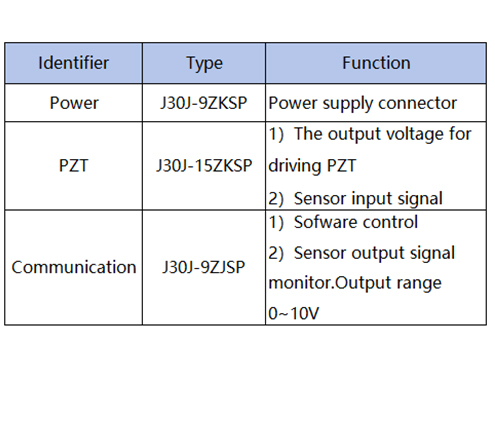

前面板


面板介绍



    技术参数

Type

E80.D3S-K

Channels

3

Nominal analog input(V)

-

Nominal output voltage(V)

-20~120V(optional -20~100/150V), one constant voltage output

Input power(W)

56

Peak current(A)

1/channel

Ave. current(mA)

70/channel

Bandwidth(Hz)

10k/channel

Ripple(mV)

5/channel(2.2μF)

PZT connector

J30J-15ZKSP

Input connector

J30J-9ZJSP

Sensor type

SGS

Servo

P.I+low pass

Output connector

J30J-9ZJSP

Communication

RS-422(J30J-9ZJSP)

Baud rate

9600、38400、57600、115200

Settable baud rate for software
secondary development

9600、19200、38400、57600、
76800、115200 、128000、
230400、256000

Processor

ARM 32 bit

D/A converter

16 bit ±10V

A/D converter

16 bit ±10V

PC software control function

Output voltage and displacement, waveform control, setting parameters

PC software waveform control

Programmable/standard

Secondary development

VC++, Matlab, LabView, DLL dynamic link library functions, etc.

Operating temperature(°C)

-40~65

Overcurrent protection

Yes

Static power(W)

11

Cooling

At the bottom of the shell

Size(mm)

150x125x30

Mass(kg)

0.649

Power supply

20~30V DC3A

Control mode

Digital signal control

    尺寸图 (点击图片可放大查看)
点击图片可放大查看
    尺寸图、参数表、使用说明书下载
Auto CAD PDF
Step
Specs Sheet
Manual
