E53.C80K-H Multi-channel Piezo Motor Controller is an 80-channel piezo screw actuator drive controller independently developed, designed, and produced by CoreMorrow. It can drive up to 80 piezo screw actuators through switching modes, and can drive up to 20 piezo screw actuators simultaneously. Not only it has 80 output channels, but also a compact size with a maximal dimension of 470×156×113 mm^3, which is suitable for batch driving piezo motors in space-limited environments. The body has a heat-dissipating area that quickly conducts the heat generated.
Characteristics
|
|
|
|

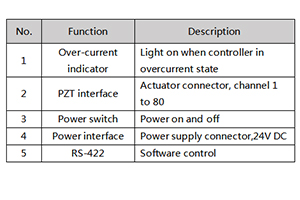

Panel Introduction ![]() |
Panel Introduction ![]() |
Technical Data | |
Type |
E53.C80K-H |
Function |
Digital controller |
Channels |
80 |
Static power consumption(W) |
80 |
Processor |
32bit 168MHz |
D/A converter |
16bit |
Communication interface |
RS-422 |
Rated output power(W) |
180 |
Operating temperature(℃) |
0~50 |
PZT connector |
RJ11 |
Communication connector |
D-Sub9 |
Current limit |
Short-circuited proof |
Power supply |
24VDC/15A(20V~30V) |
Size(mm) |
470×156×113 |
Mass(kg) |
6.4 |
|
|
