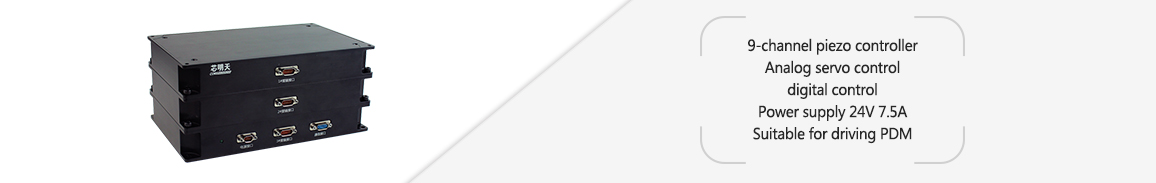

E80.D9S-K Multi-channel Piezo Controller is a 9-channel output driving controller suitable for driving piezo tip/tilt platform.

Characteristics

9-channel piezo controller	Analog servo control	digital control	Power supply 24V 7.5A
Suitable for driving PDM

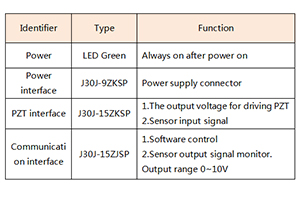

Panel introduction

Panel introduction

Technical Data
Type	E80.D9S-K
Function	Digital controller
Channels	9
Communication	RS-422
Baud rate	9600、38400、57600、115200、460800、691200
Nominal output voltage (V))	0~120V
Peak current(A)	1/channel
Ave. current(mA)	70/channel
Average power(W)	8/channel
Bandwidth(Hz)	10k/channel
Ripple(mV)	10/channel
PZT interface	J30J-15ZKSP
Communication&Sensor interface	J30J-15ZJSP
Sensor type	SGS
Servo	Analog P-I
Operating temperature(°C)	-40~65
Power supply	24V 7.5A
Cooling	At the bottom of the shell
Size(mm)	200×125×90
Mass(g)	1800

Drawing （Click on the picture to enlarge it）
