The E80.C2K-H Multi-channel Piezo Controller is specially customized according to customer requirements, and it's mainly used for driving piezo actuator. The power amplifier module has two output channels which can output 0~200V voltage, and controlled by analog or digital signal.
The customized modules have extra two DAC outputs and eight ADC gatherings, their voltage ranges all are 0~10V, and resolution is better than 0.1mV. There is a extra ±8V power supply output on the front panel.
Characteristics
|
|
|
|
|

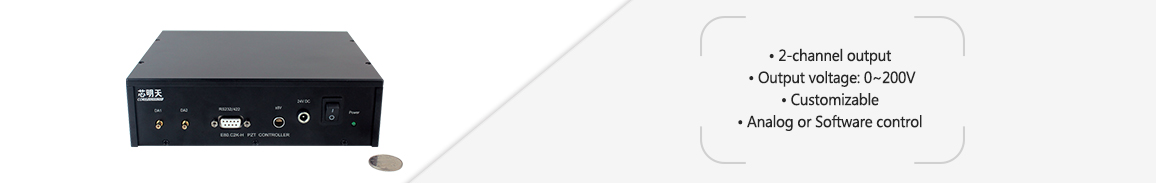

2-channel output|

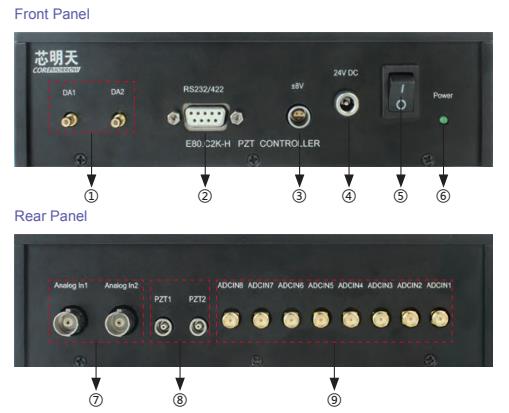

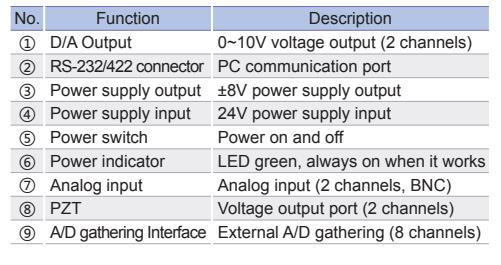

Panel introduction
|

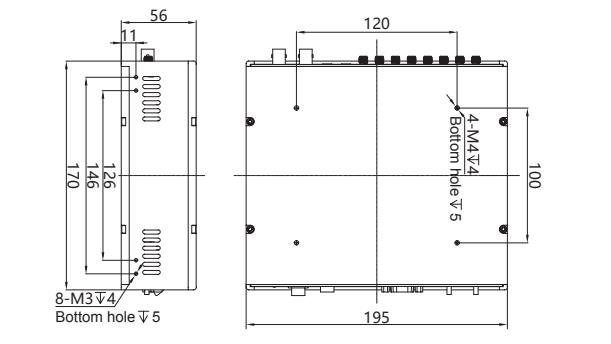

Panel introduction
|
| Technical Data | |
|
Type |
E80.C2K-H |
|
Channels |
2 |
|
Power supply |
24VDC/1A(20V~30V) |
|
Static power(W) |
12 |
|
Processor |
32bit 480MHz |
|
D/A converter |
18bit |
|
A/D converter |
18bit |
|
Communication Interface |
RS-232，RS-422 |
|
Nominal analog input(V) |
0~10 |
|
Nominal output |
0~200 |
|
Peak current(mA) |
200 |
|
Ave. current(mA) |
60 |
|
Ampliffer bandwidth(kHz) |
10 |
|
Ripple(mVpp) |
10(@2.2μF) |
|
Rated output power(W) |
12 |
|
Operating temperature range(°C) |
0~50 |
|
Output short-circuit current(mA) |
60 |
|
PZT output connector |
ERA.00.250.CTL |
|
±8V output Interface |
EPL.0S.303.HLN |
|
Communication |
DB9 |
|
Analog Input |
BNC |
|
A/D gathering Interface |
SMA |
|
D/A output Interface |
SMB |
|
Size(mm) |
195×170×56 |
|
Mass(kg) |
1.85 |
