E80.D3S-P Multi-channel Piezo Controller is designed for driving Piezo Tip/Tilt Platform with 3 channels output that contains one constant voltage output, which is very suitable for differential drive. The controller has the function of sensor monitor that can output sensor voltage signal that feedbacks the travel of PZT, which can achieve high-precision control of the platform.The controller can meet many strict environmental tests, such as electromagnetic compatibility tests (CS101, CS114, CS115, CS116, RE102, RS103), mechanical impact tests (gravity acceleration of 20g), and 22.6kPa low pressure tests (absolute value).

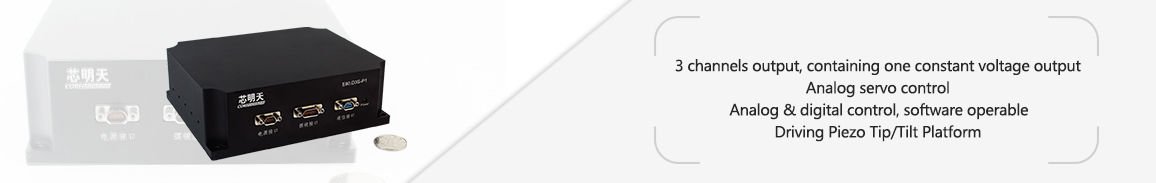

Characteristics
|
|
|
|
|
|
|
|
3 channels output, containing one constant voltage output|

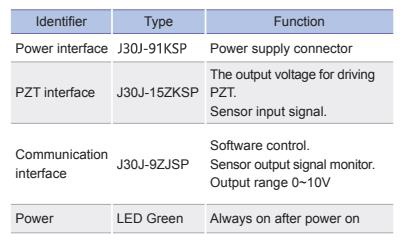

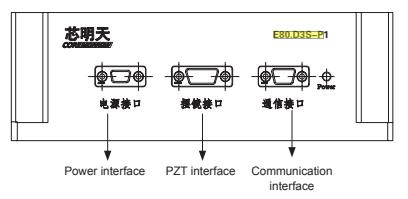

Panel Introduction
|
Panel Introduction
|
| 技术参数 | |
|
Type |
E80.D3S-P |
|
Channels |
3 |
|
Nominal analog input(V) |
-10~+10 |
|
Nominal output voltage (V) |
-20~120V(optional |
|
Input power(W) |
56 |
|
Peak current(A) |
1/channel |
|
Ave. current(mA) |
70/channel |
|
Bandwidth(Hz) |
10k/channel |
|
Ripple(mV) |
5/channel(2.2μF) |
|
PZT connector |
J30J-15ZKSP |
|
Input connector |
J30J-9ZJSP |
|
Sensor type |
SGS |
|
Servo |
P.I + low pass |
|
Output connector |
J30J-9ZJSP |
|
Communication interface |
RS-422（J30J-9ZJSP） |
|
Baud rate |
9600、38400、57600、115200 |
|
Settable baud rate for software |
9600、19200、38400、57600、 |
|
Processor |
ARM 32 |
|
D/A converter |
16 ±10V |
|
A/D converter |
16 ±10V |
|
PC software control function |
Output voltage and |
|
PC software waveform control |
Programmable/standard |
|
Secondary development |
VC++, Matlab, LabView, DLL |
|
Operating temperature(°C) |
-40~65 |
|
Overcurrent protection |
Yes |
|
Static power(W) |
11 |
|
Cooling method |
Shell |
|
Size(mm) |
150x125x50 |
|
Mass(kg) |
0.98 |
|
Power supply |
20~30V DC3A |
|
Control mode |
Digital/Analog |
