This controller is designed for industrial applications. It uses a customdesigned industrial interface and is suitable for driving various capacitive loads, such as PZT piezoelectric actuator. It can be used in various industrial applications, such as optical detection and interference shifting.
Characteristics
|
|
|
|
|
|

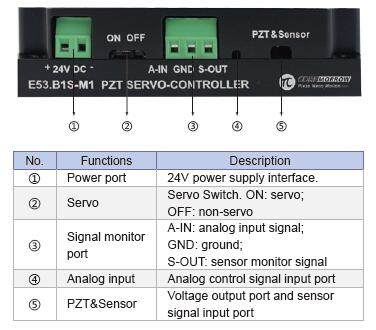

Panel Introduction
|
| Technical Data | |
|
Models |
E53.B1S-M |
|
Power supply |
24VDC/1A |
|
Static power(W) |
<4 |
|
Servo control |
|
|
Sensor type |
SGS |
|
Servo characteristic |
Analog P-I |
|
Drive |
|
|
Channels |
1 |
|
Nominal analog Input voltage (V) |
-1.67～10V |
|
Output voltage (V) |
-20～120 |
|
Peak current(mA) |
125 |
|
Ave. current(mA) |
21 |
|
Bandwidth(kHz) |
1 |
|
Ripple(mVpp) |
10(@2.2μF load) |
|
Rated output power(W) |
2.5 |
|
Protection |
|
|
Operating temperature(°C) |
0~50 |
|
Output current, short-circuit (mA) |
21 |
|
Overcurrent indication |
No |
|
Connector |
|
|
Control input connector |
Bare wire |
|
Sensor output connector |
KF128-3P |
|
Sensor connector |
Bare wire |
|
PZT connector |
Bare wire |
|
Power connector |
KF128-2P |
|
Appearance |
|
|
Size(mm) |
80×62×20 |
|
Mass(g) |
105 |
