ZPL.00.250.NTN
E53.B1S-K Compact Piezo ControllerCurrent Location：Product Homepage >> Compact piezo controller>>E53.B1S-K Compact Piezo Controller
- Introduction
- Feedback
This controller is designed for industrial applications and can be used to drive capacitive loads such as piezo ceramic actuators. The customized interface is more suitable for industrial applications.

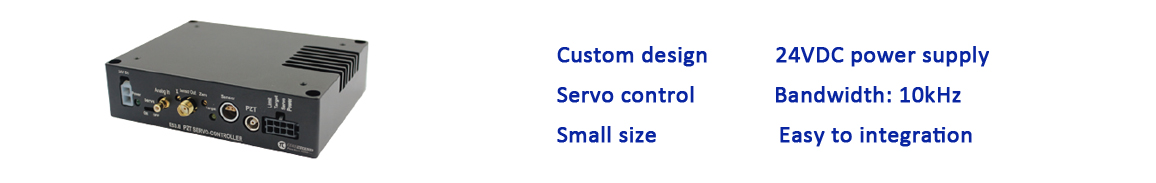

Characteristics
|
|
|
|
|
|
Panel Introduction
|
|
| Technical Data | |
|
Models |
E53.B1S-K |
|
Channels |
1 |
|
Input voltage (V) |
-1.67～10V |
|
Output voltage (V |
-20～120V(Optional-20～150V) |
|
Peak current(A) |
1 |
|
Ave. current(mA) |
60 |
|
Bandwidth(kHz) |
10 |
|
Ripple(mVpp) |
10(@2.2μF) |
|
PZT connector |
|
|
Control input connector |
SMB |
|
Servo |
|
|
Sensor type |
SGS |
|
Servo characteristic |
Analog P-I+Notch filter+Low pass filter |
|
Sensor connector |
EPL.0S.304.HLN |
|
Sensor output connector |
SMA |
|
Others |
|
|
Operating temperature(°C) |
0~50 |
|
Output current, short-circuit (mA) |
60 |
|
Overcurrent indication |
Lights, when ave. |
|
Static power(W) |
<4 |
|
Size(mm) |
L105×W27.5×D81.5 |
|
Mass(kg) |
0.32 |
|
Power supply |
24V(20~30V)DC1.5A(36W) |
|
Power interface |
Molex4.2_1x2 |
|
Target indicator |
Molex3.0 _4x2 |
