E63.C1K-H is a small-volume single-channel open-loop low-dynamic piezoelectric ceramic controller with USB power supply and computer software control, and suitable for industrial applications. The product is only the size of the U disk, which is convenient for the integrated controller and is the first choice for the open-loop small-volume piezoelectric controller.
Characteristics
|
|
|
|
|
|

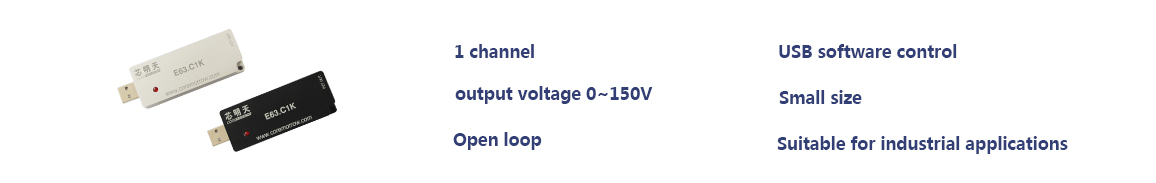

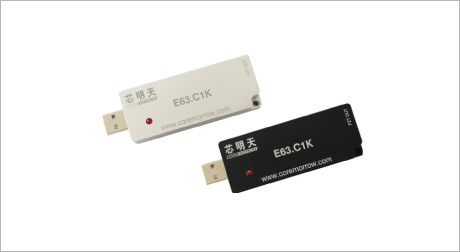

Small size
|

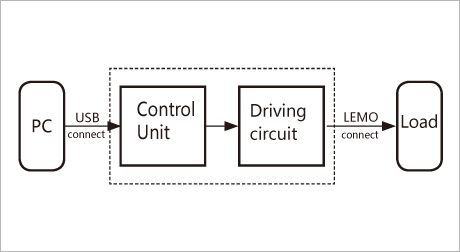

Driving Principle
|

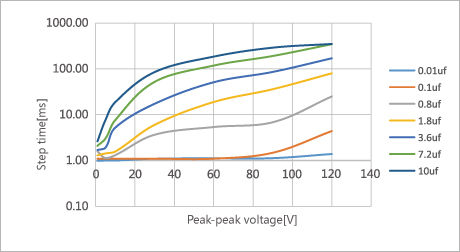

Output Voltage, Frequency and Load Curves
|
|

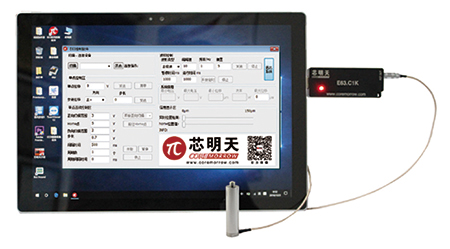

Applications Below image shows that E63.C1K driving a preloaded piezo actuator, which is very compact and easy to integrate, making it ideal for applications such as interferometers.
|
| Technical data | ||
|
Models |
E63.C1K-H |
Units |
|
Function |
Power Amplifier |
|
|
Channels |
1 |
|
|
Power supply |
USB, 5/500 |
V/mA |
|
Output voltage |
-20~150 |
V |
|
Processor |
32 |
MHz |
|
D/A converter |
12bit |
|
|
A/D converter |
- |
|
|
Peak current |
35 |
mA |
|
Ave. Current |
2.5 |
mA |
|
Output current, short-circuit |
6 |
mA |
|
Short circuit protection |
Yes(6mA) |
|
|
Input power |
1.2 |
W |
|
Static power |
0.4 |
W |
|
Amplifier bandwidth |
1 |
kHz |
|
Output ripple |
8(2.2 μF) |
mVpp |
|
Operating temperature |
0 ~ 50 |
℃ |
|

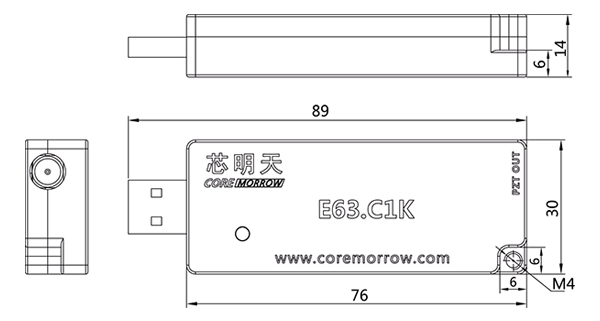

Size |
89×30×14 |
mm |
|
Mass |
52 |
g |
|
Heat dissipation |
- |
|
|
PZT connector |
ERA.00.250.CTL |
|
|
Connector |
USB-A |
|
