E63.A Miniature Piezo Controller is a small-volume single-channel open-loop low-dynamic piezoceramic controller with analog input control and pin-type connection. The product is small in size, and suitable for industrial application.
Characteristics
|
|
|
|

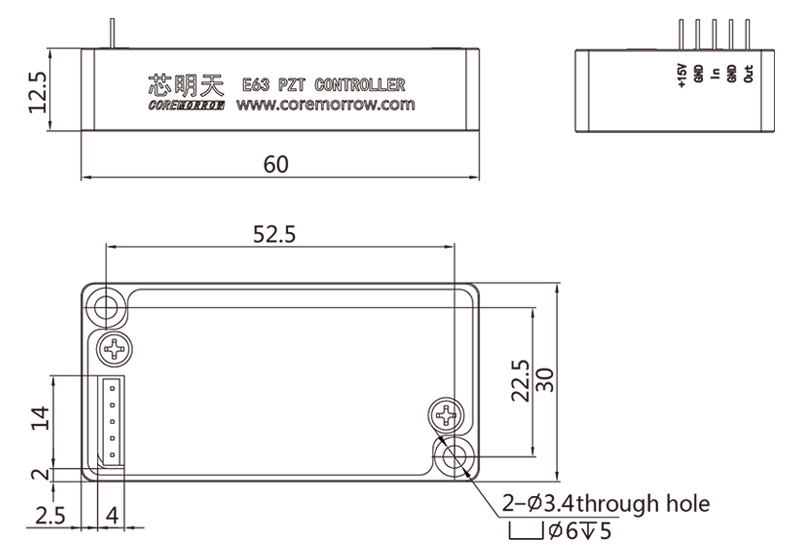

Small size ![]() |

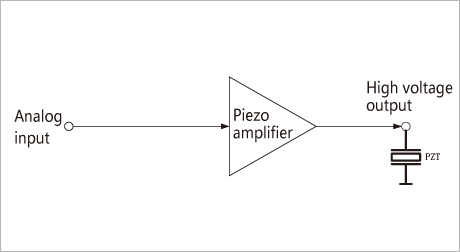

Driving Principle ![]() |

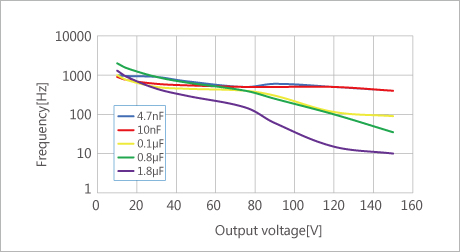

Output Voltage, Frequency and Load Curves ![]() |
Selection guide ![]() |
![]() |

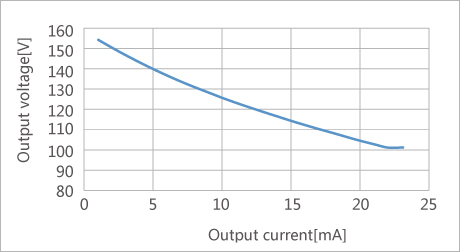

Voltage Drop Curve ![]() |
Technical data | |
Models |
E63.A1K-H |
Function |
Analog single channel driver |
Drive |
|
Channels |
1 |
Control input voltage(V) |
-1.67~10 |
Output voltage range(V) |
-20~120(optional -20~150) |
Peak current(mA) |
170 |
Ave. Current(mA) |
12 |
Static power(W) |
0.2 |
Amplifier bandwidth(kHz) |
1 |
Output ripple(mVpp) |
5(2.2μF) |
Interface |
5P single row pin (2.54 pitch) |
Others |
|
Operating temperature(℃) |
0 ~ 50 |
Size (L×W×H) mm |
60×30×11.5 |
Mass(g) |
35 |
Power supply |
+15VDC/0.5A |
Heat dissipation |
The housing needs to be cooled |
|
|
