To meet the small-volume application requirements, CoreTomorrow develops E53.C piezo controller. It is a single-channel controller controlled by analog and digital signals. Its the power supply is 24VDC/1.5A. The body has a heat-dissipating area that conducts the heat generated.
Characteristics
|
|
|
|
Driving Principle ![]() |

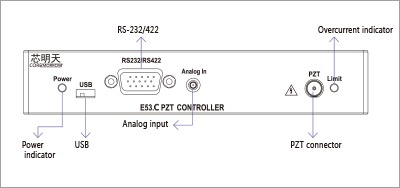

Panel Introduction ![]() |
Frequency, Ouput Voltage and Load Curves ![]() |
Selection Guide ![]() |
Technical data | |
Model |
E53.C1K |
Channels |
1 |
Input voltage (V) |
-1.67~10 |
Output voltage (V) |
-20~120(Optional -20~150) |
Peak current(A) |
1 |
Ave. current(mA) |
60 |
Bandwidth(kHz) |
10 |
Ripple(mVpp) |
10(@2.2μF) |
PZT connector |
ZPL.00.250.NTN |
Input connector |
SMB |
Interfaces and operation |
|
Communication interface |
USB(TYPE-C),RS-422(D-SUB9), RS-232(D-SUB9) |
Baud rate |
9600、19200、38400、115200 |
Software Secondary development baud rate |
9600、19200、38400、57600、76800、115200 、128000、230400、256000 |
Processor |
32Bit 168MHz |
D/A converter |
16Bit |
A/D converter |
16Bit |
Others |
|
Operating temperature(°C) |
0~50 |
Output current, short-circuit (mA) |
60 |
Overcurrent indication |
Overcurrent indicator lights when output ave. current > 60mA |
Static power(W) |
<5 |

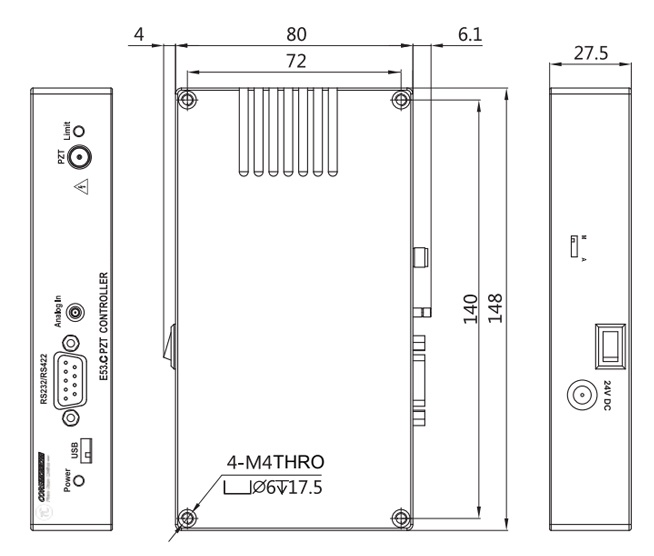

Size(mm) |
148×27.5×80 |
Mass(kg) |
0.35 |
Power supply |
24V(20~30V)DC1.5A(36W) |
|
|
|
