E53.D1S-L Compact Piezo Controller is a 1-channel piezo controller designed based on the standard E53.D1S-H piezo controller. It can be operated through software via serial port, USB or network port.
|

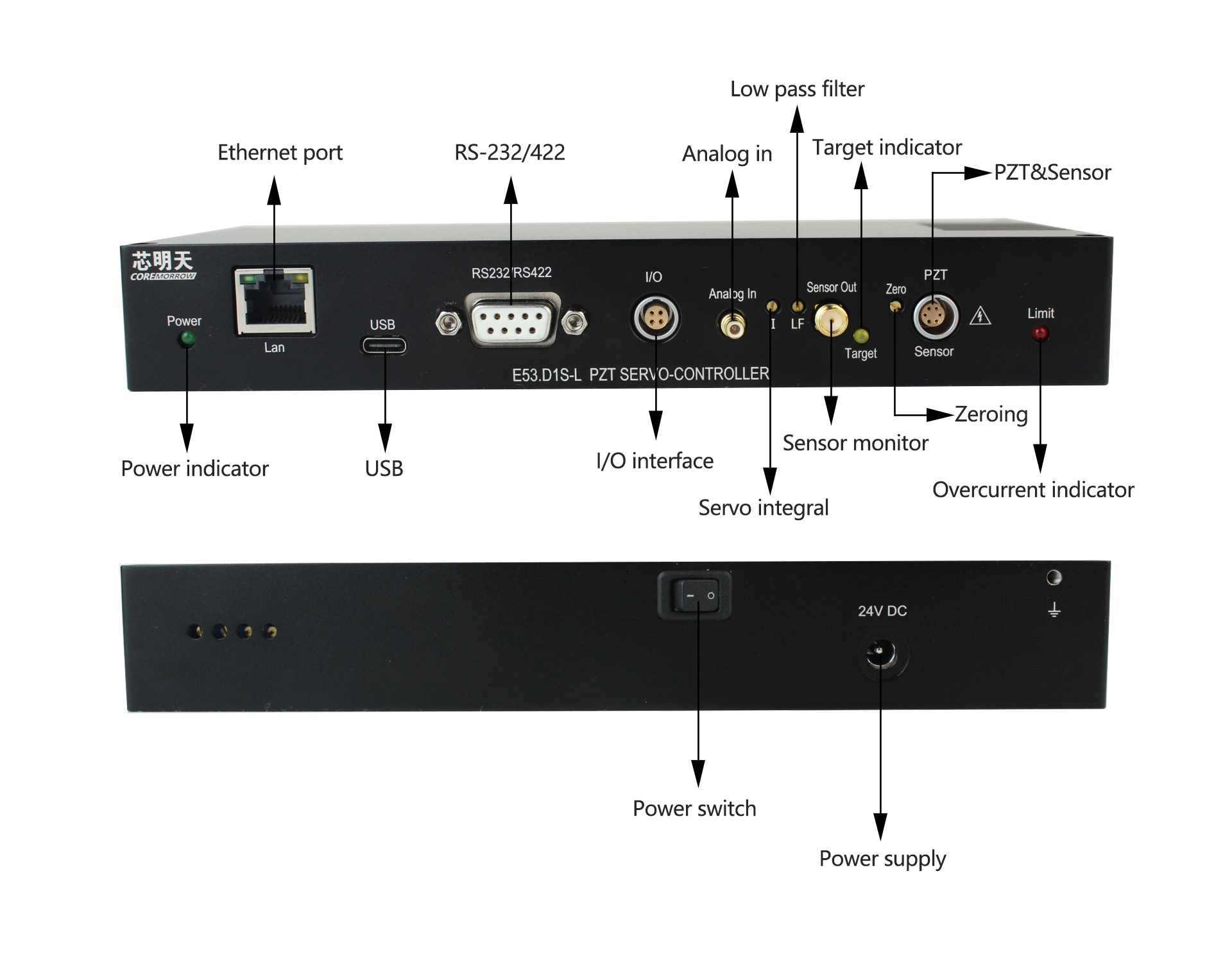

Panel Introduction
|
| Technical Data | |
|
Type |
E53.D1S-L |
|
Channels |
1 |
|
Input voltage(V) |
-1.67~10 |
|
Output voltage(V) |
-20~120（Optional-20~150） |
|
Peak current(A) |
1 |
|
Ave. current(mA) |
60 |
|
Bandwidth(kHz) |
10 |
|
Ripple(mVpp) |
10（@ 2.2μF） |
|
Input connector |
SMB |
|
PZT connector |
ZPG.0B.306.HLN |
|
Sensor type |
SGS |
|
Servo characteristics |
Analog P-I+Notch filter +Low pass filter |
| Sensor connector |
ZPG.0B.306.HLN |
|
Sensor output connector |
SMA |
|
I/O interface |
Setting the input or output |
|
I/O connector |
EPG.0B.304.HLN |
|
Communication Interfaces |
RS-232/422(DB9), USB(Type-C), Ethernet |
|
Baud rate |
9600、19200、38400、115200 |
|
Secondary development baud rate |
9600、19200、38400、57600、76800、115200 、128000、230400、256000 |
|
Processor |
32Bit 168MHz |
|
D/A converter |
16Bit |
|
A/D converter |
16Bit |
|
Operating temperature(°C) |
0~50 |
|
Output current, short-circuit(mA) |
60 |
|
Overcurrent indicator |
Lights when output ave.current > 60mA |
|
Static power(W) |
5 |
|

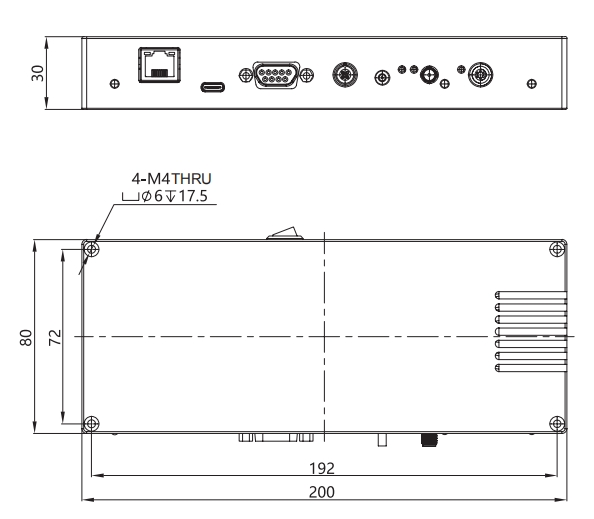

Size(mm^3) |
200x30x80 |
| Mass(kg) | 0.46 |
|
Power supply |
24V(20~30V)DC1.5A(36W) |
