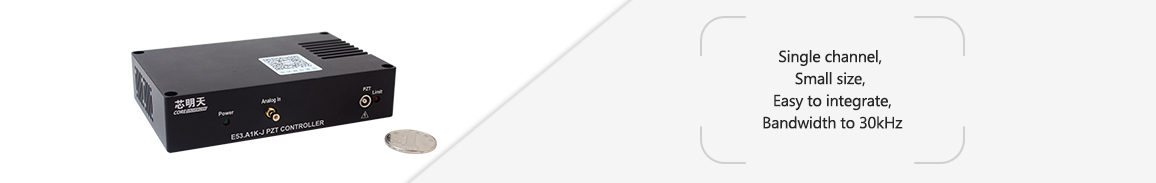

E53.A1K-J Compact Piezo Controller has a size of 123×27.5×80mm^3, with one output, controlled by analog signal. The body has a heat-dissipating area that quickly conducts the heat generated.
Characteristics
|
|
|
|

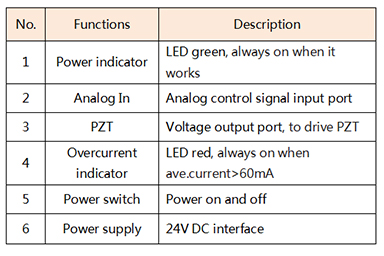

Panel Introduction ![]() |
Panel Introduction ![]() |
Technical Data | |
Type |
E53.A1K-J |
Channels |
1 |
Nominal analog input(V) |
-1.67~10 |
Nominal output voltage(V) |
-20~120(Optional -20~150) |
Peak current(A) |
1 |
Ave. current(mA) |
60 |
Bandwidth(kHz) |
30@120V |
Ripple(mVpp) |
10(loading 2.2μF) |
PZT connector |
ZPL.00S.250.HLN |
Control input connector |
SMB |
Operating temperature(°C) |
0~50 |
Output short-circuited current(mA) |
60 |
Overcurrent indication |
Lights on, when ave. current>60mA |
Static power(W) |
5 |
Size(mm) |
123×27.5×80 |
Mass(kg) |
0.32 |
Power supply |
24V(20~30V)DC1.5A(36W) |
|
|
