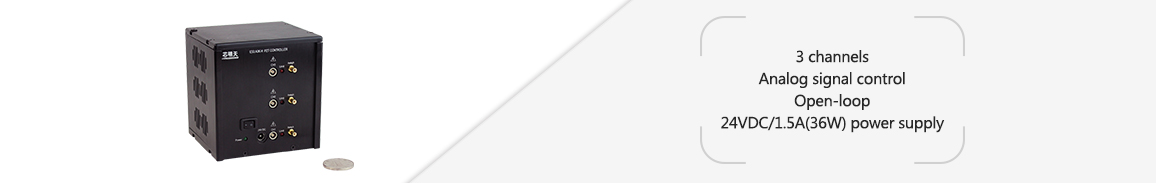

E53. A3K-H is a 3-channel piezo controller. It is open loop and analog control, and the power supply is 24VDC/1.5A. The body has a heat-dissipating area that quickly conducts the heat generated.
Characteristics
|
|
|
|
|
3 channels| Technical Data | |
|
Type |
E53.A3K-H |
|
Channels |
3 |
|
Nominal analog input(V) |
-1.67~10 |
|
Nominal output voltage(V) |
-20~120(Optional -20~150) |
|
Peak current(A) |
1 |
|
Ave. current(mA) |
60 |
|
Bandwidth(kHz) |
10 |
|
Ripple(mVpp) |
10(loading 2.2μF) |
|
PZT connector |
ZPL.00S.250.HLN |
|
Control input connector |
SMB |
|
Operating temperature(°C) |
0~50 |
|
Output short-circuited current(mA) |
60 |
|
Overcurrent indication |
Lights on, when ave. current>60mA |
|
Static power(W) |
6 |
|
Size(mm) |
L92.9×W96×H85.9 |
|
Mass(kg) |
0.7 |
|
Power supply |
24V(20~30V)DC1.5A(36W) |
