E62.A1K-I Miniature Piezo Control Module is a small and linear amplifier, it can be used to drive piezo benders, piezo stack actuators, and other piezo products. It can provide variable gain and bias voltage, switchable voltage range and the selection between unipolar and bipolar inputs and outputs. Its applications include piezo valves, motors, pumps, MEMS, and ultra-low power positioning and operating systems.

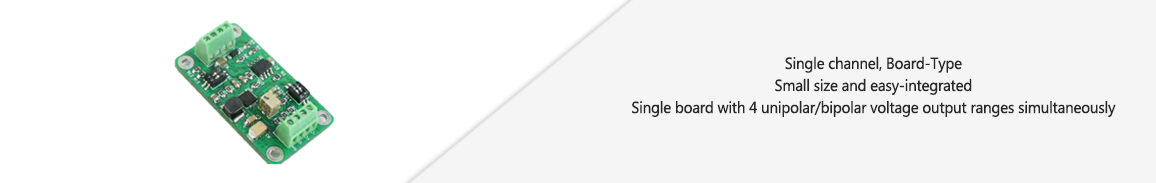

Characteristic
|
|
|
|
|
Single channel|

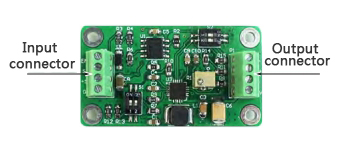

Pin&Function Introduction
|

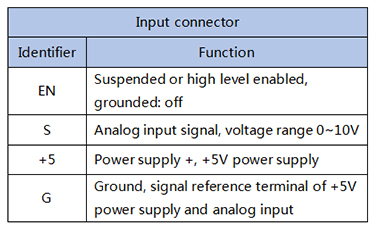

Input connector
|

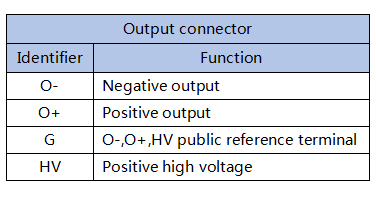

Output connector
|
|

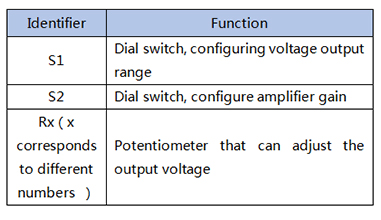

Function
|

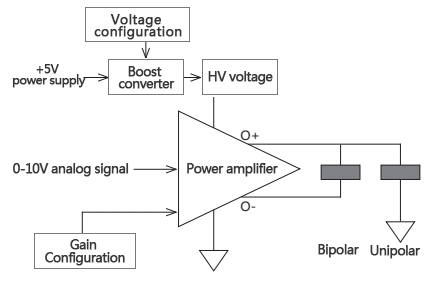

Functional Block Diagram
|
| Technical Data | ||||
|
Type |
E62.A1K-I |
|||
|
Channels |
1 |
|||
|
Power supply(V) |
+5V DC |
|||
|
Unipolar voltage output ranges(V) |
0~25 |
0~50 |
0~75 |
0~100 |
|
Bipolar voltage output ranges(V) |
-25~+25 |
-50~+50 |
-75~+75 |
-100~+100 |
|
Static power(W) |
0.03 |
0.04 |
0.06 |
0.105 |
|
Input power(W) |
2.56 |
2.75 |
2.55 |
2.95 |
|
Ave. current(mA) |
25 |
16 |
9 |
6 |
|
Bandwidth(kHz) |
10 |
6 |
4 |
3 |
|
Peak current(mA) |
100 |
|||
|
Input voltage range(V) |
0~10 |
|||
|
Input impedance(KΩ) |
133 |
|||
|
Ripple(mVpp) |
120（@2.2μF） |
|||
|
Connector |
KF128-2.54-4P |
|||
|
Protection |
Overheat protection,Overcurrent and overload protection |
|||
|
Operating temperature(°C) |
-40~+70 |
|||
|
Size（mm） |
45×25 |
|||
|
Mass（g） |
7.8 |
|||
