Type

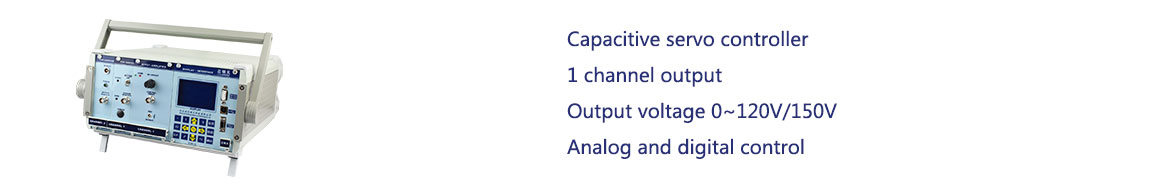

E01.D1（Capacitive servo）

Channels

1

Input analog signal

-1.67~+10V（Optional 0~+5V,-10~+10V,-5~+5V ）

Output voltage

-20~120V

Output voltage ripple

5mV

Input impedance

100KΩ±20%

Unloaded bandwidth

10kHz

Ave. current

291mA

Peak current

1A

Bandwidth, small signal(1/10)

>20kHz

Current limit

Short-circuit protection

Voltage gain

12 times

Knob adjustment

10 turns

Servo sensor

CAP capacitive type

Sensor output connector

BNC

Sensor output voltage

0~+10V

D/A converter

16Bit ±10V

A/D converter

16Bit ±10V

Output voltage resolution

16Bit(1/30000 of full measuring range)

Communication

RS-232/RS-422(Band rate 9600)/USB 2.0

Voltage stability

＜0.1%F.S./8hours

Power supply

AC 220V±10％ 50Hz±10％

Basic control way

Manual adjustment, analog input, computer serial/USB interface, spontaneous waveform control, open loop/servo control

Basic functions

Overcurrent protection, overtemperature

Size(L×H×D)

315×375×175mm

Software configuration

Powerful standard computer control software

Spontaneous waveform

Sine, square, triangular, sawtooth wave, 1kHz-10kHz frequency with no attenuation

LCD keyboard

Standard(LCD, membrane button, RS-232, RS-422,
