- Introduction
- Feedback

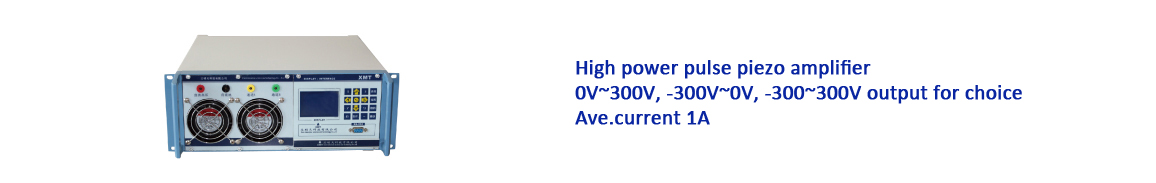

C47 Chassis-type Piezo Controller is high-power piezoceramic controllers that are ideally suited for driving and testing of large quantities of piezoceramics with adjustable frequency and output voltage.
Characteristics
|
|
|
|
|

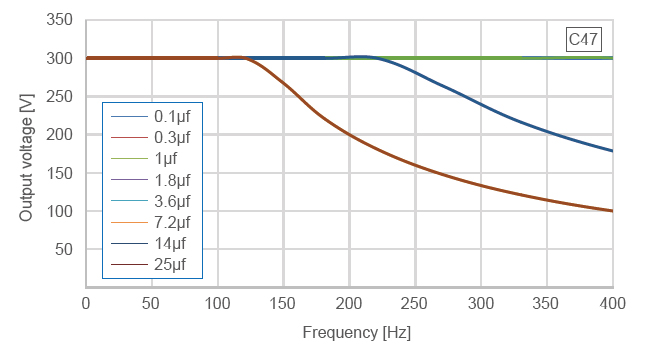

Output, Load and Frequency Curve
|
| Technical data | ||
|
Type |
C47.K1AL |
|
|
Functions |
Large power pulse piezo amplifier |
|
|
Drive |
||
|
Channels |
2 |
1 |
|
Output voltage(V) |
Unipolar, |
Bipolar, |
|
Peak current(mA) |
3000 |
|
|
Ave. current(mA) |
1000 |
|
|
Amplifier bandwidth(Hz)） |
300 |
|
|
Output ripple(mVpp) |
50 |
|
|
Control input voltage(V) |
AC 0~250 |
|
|
Output voltage range(V) |
Control input votlage × 1.4 |
|
|
Input connector |
JXZ-2 type terminal |
|
|
Output connector |
JXZ-2 type terminal |
|
|
Interface and operation |
||
|
Communication |
RS-232 |
|
|
D/A converter |
16Bit |
|
|
A/D converter |
16Bit |
|
|
External feature |
Film keyboard LCD display |
|
|
Software configuration |
Standard computer software |
|
|
Output waveform type |
Square wave |
|
|
Others |
||
|
Operating temperature(°C) |
0~50 |
|
|
Size(mm) |
L343×H133×D343 |
|
|
Power supply |
220VAC 50Hz±10% |
|
|
|
