CoreMorrow E00A02V050F10M power amplifier integrates with internal voltage and power amplifier circuit, which can amplify the weak external analog input signals or analog signals from DA or other control signals, and then output. Its output bandwidth can be up to 10MHz, and the gain can be adjusted; Keyboard operation and touch operation are available. It has host computer communication function and optional signal generator function. Parameters can be customized.
Characteristics
|
|
|
|
|
|
|
Applications
|
|
|
|
|
|
|
|

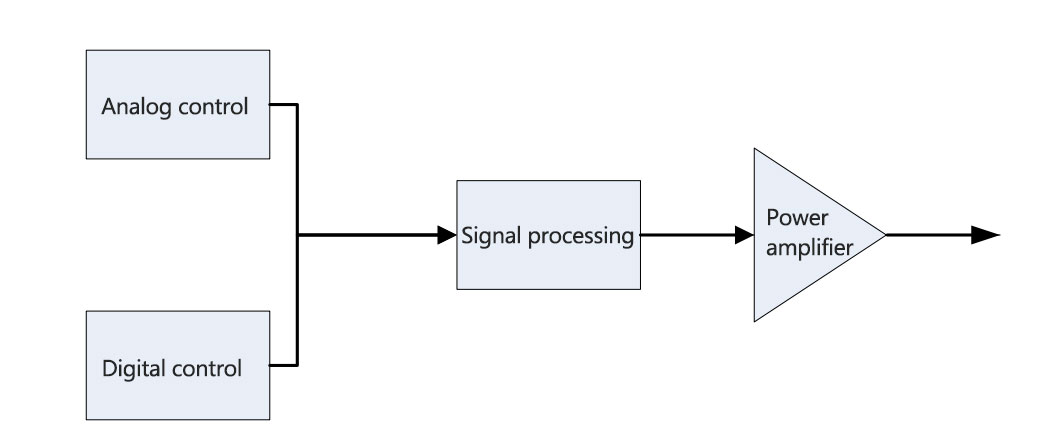

Principle
|
|

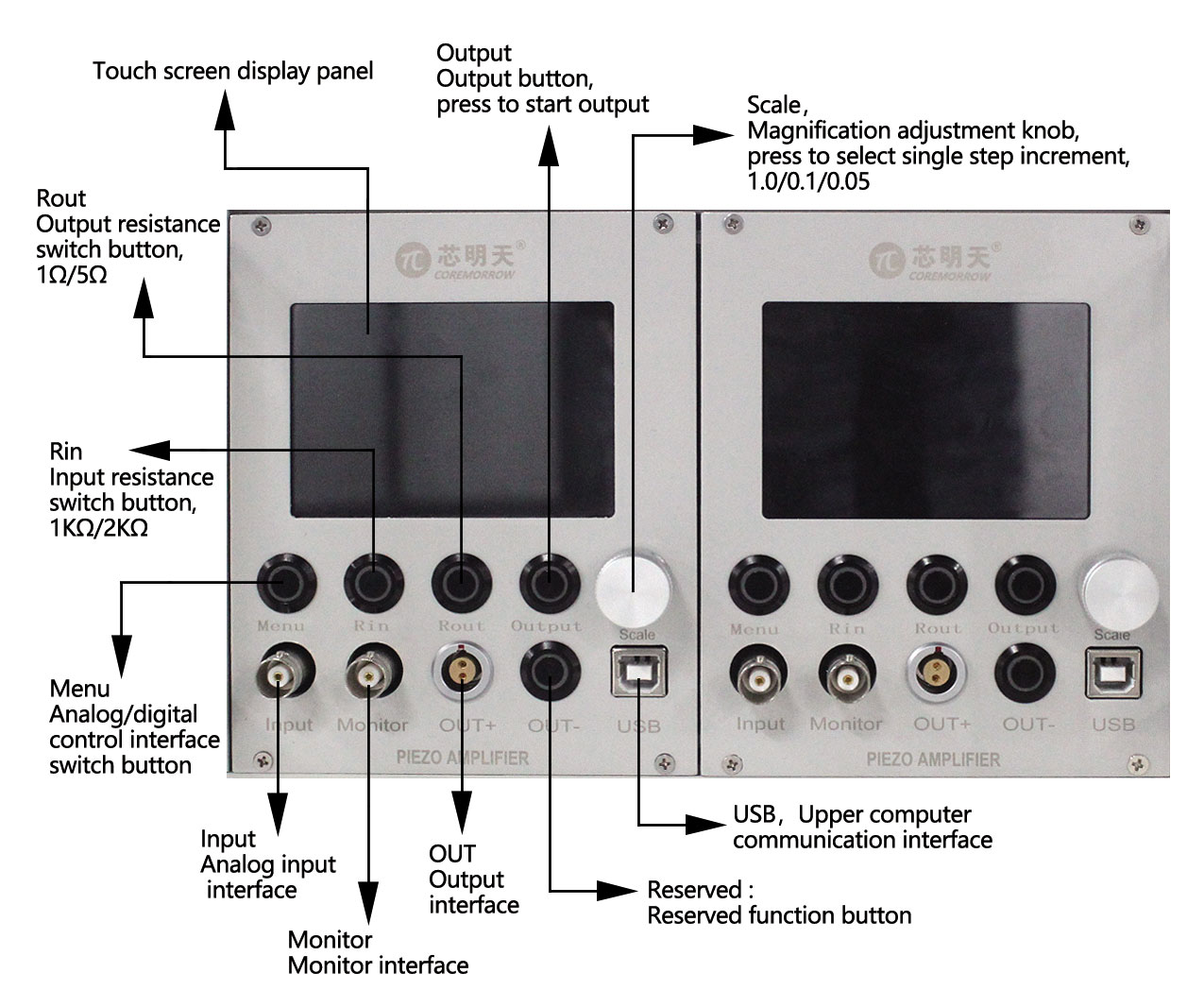

Front Panel
|

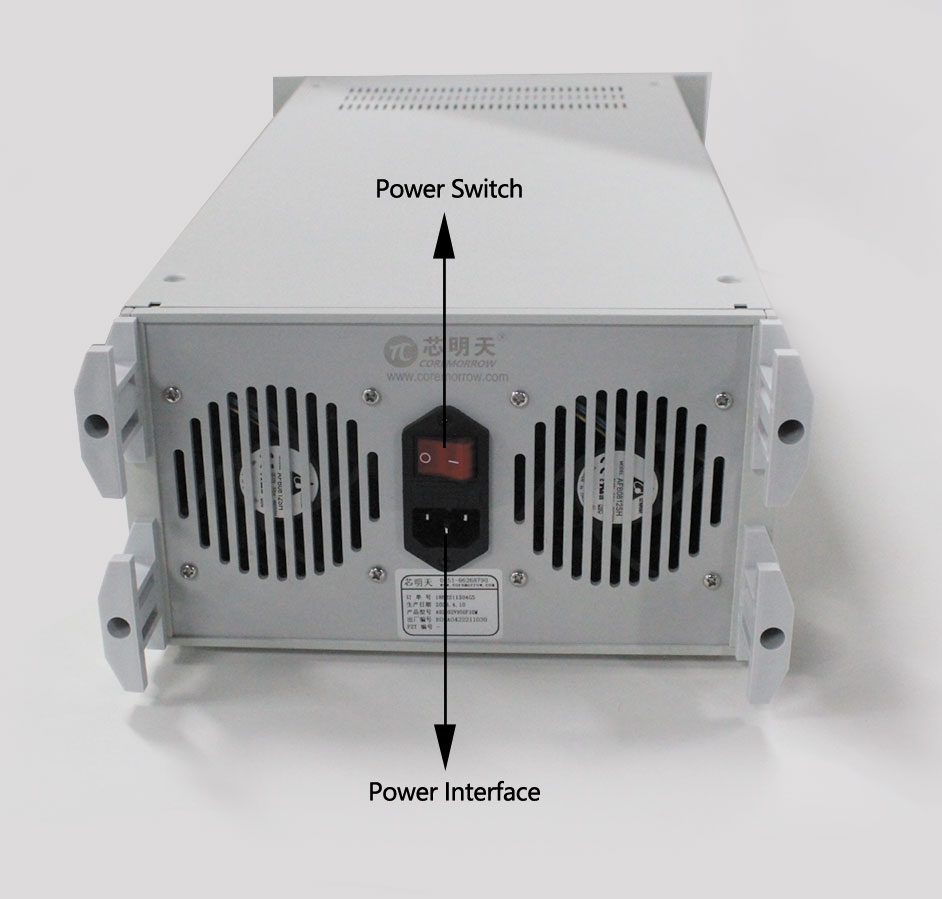

Rear Panel
|
| Technical Data | |
|
Type |
E00A02V050F10M |
|
External input channel |
2 |
|
Signal generator channel |
2 |
|
Output type |
Single output |
|
Bandwidth(-3dB, MHz) |
DC～10 |
|
Max. output voltage(Vp-p) |
50(25Vp) |
|
DC offset(V) |
-25～+25adjustable |
|
Max. output current(Ap) |
1 |
|
Max. output power/channel(Wp) |
25 |
|
Fuse |
4A/250V |
|
Voltage gain |
x0～5（0.05step） |
|
Output resistance(Ω) |
1/5 |
|
Input resistance(Ω) |
1k/2k |
|
Max. Input voltage(Vp-p) |
5 |
|
Max. capacitance(μF) |
1 |
|
Output voltage error |
≤±3%F.S.@1kHz |
|
Voltage monitor |
100：1（±5%） |
|
Slew rate(V/μs) |
1000 |
|
Total harmonic distortion(THD) |
≤0.1%@1kHz，50Vp-p |
|
Output voltage zero drift(V) |
≤0.2 |
|
Signal to noise ratio(SNR)(dB) |
≥80 |
|
Output interface |
4mm Banana jack |
|
Communication interface |
USB（slave computer to RS-232） |
|
Upper computer control software |
VB routine |
|
Secondary development |
Available, provide communication protocol |
|
Protection |
Over current protection |
|
Signal Ground |
Connected with the chassis and power cord |
|
Power supply |
AC220V±10%，50Hz |
|
Operating temperature(℃) |
0～45 |
|
Storage temperature(℃) |
-20～50 |
|
Operating humidity |
≤80%RH，non-condensing |
|

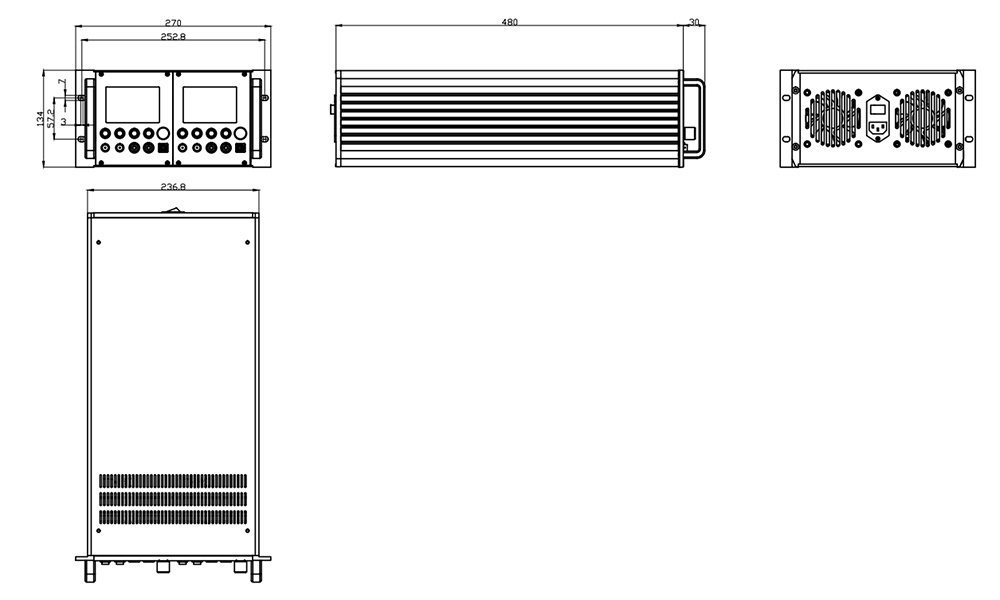

Dimensions(mm) |
270×134×510 |
|
Mass(kg) |
12.9 |
