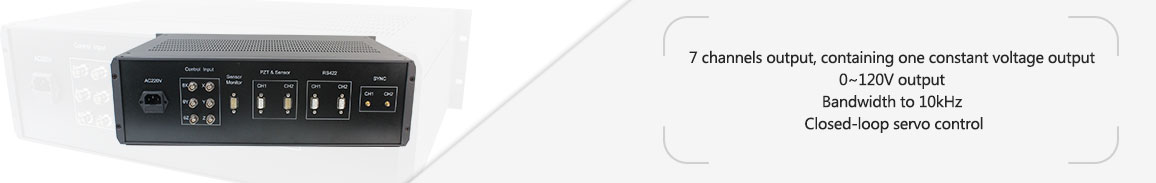

E00.D6K04/E00.D10AL Chassis-type Piezo Controller is designed for driving 6-axis piezo tilt stage with 7 channels output that contains one constant voltage output. It can be controlled by analog or digital signals and it can communicate with the software control through the RS-422 serial port.
Characteristics
|
|
|
|
|
|
6/7 channels output|
Front Panel
|
Rear Panel
|
Driving 6-Axis Piezo Tilt Stage
|
Applications
|
|
|
|
| Technical Data | ||
|
Type |
E00.D6K04
|
E00.D10AL |
|
Drive |
||
|
Channels |
6 |
7，containing 1 constant voltage output |
|
Analog input(V) |
- |
0~10 |
|
Ripple(mV) |
5 |
5 |
|
Unloaded bandwidth（kHz） |
10 |
10 |
|
Ave. Current(mA) |
230 |
291 |
|
Peak current(A) |
1 |
1 |
|
Control input interface |
BNC |
BNC |
|
Servo control |
||
|
Sensor type |
SGS or（LVDT、CAP） |
|
|
Servo |
Analog P-I +Notch filter |
|
|
Sensor interface |
DB15HD |
|
|
Sensor output voltage(V) |
0~10 |
|
|
Communication |
||
|
Computer interface |
RS-422 |
|
|
Baud rate |
9600、19200、38400、57600、76800、115200 、128000、230400、256000、5250000 |
|
|
Output wave frequency(Hz) |
10 |
|
|
I/O interface |
SMB |
|
|
Others |
||
|
Operating temperature(°C) |
0~50 |
|
|
Power supply |
AC 220V±10％，50Hz±10％ |
|
|
Current limit |
Short-circuited proof |
|
|
L×H×D(mm) |
449×134×315
|
449×134×315 |
