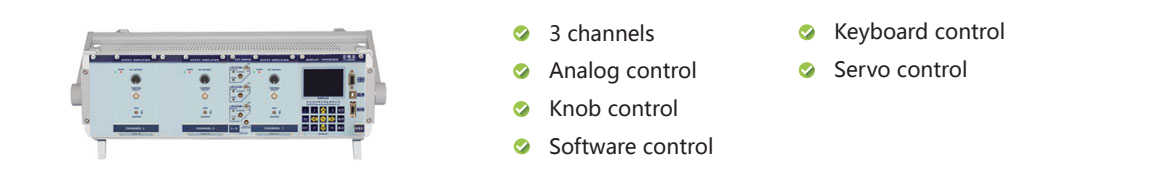

Type

E00.D3（E05 module）

Power amplifier module

Channels

3

Contol analog input

-1.67~10V（Optional 0~5V）

Output voltage

-20~120V（optional -20~150V）

Ripple

5mV

Voltage stability

＜ 0.1%F.S./8hours

Input impedance

100KΩ±20%

Bandwidth

10kHz（Optional 30k, 50kHz, etc.）

Ave.current

291mA

Peak current

1A

Bandwidth (1/10 signal)

>20kHz

Voltage gain

12

Knob adjustment

10 turns

PZT sensor control module

Sensor type

SGS（Optional LVDT, CAP）

Sensor channels

3

Servo

Analog P-I+notch filter

Sensor port

ERA.0S.304.CLL

Sensor output port

ERA.0S.303.CLL

Sensor output votlage

0~10V

Display & interface module

Channels

3

D/A converter

16Bit±10V(optional 24 Bit±10V)

Output voltage
resolution

 1/30000

A/D converter

16Bit±10V

Film botton

15 buttons

Communication port

RS-232/422, USB

Bandrate

9600, 19200, 38400, 57600, 76800, 115200, 128000, 230400, 256000

Output frequency

10kHz

I/O port

1~3pcs, user can set the input or output, MDR14 connector

LCD keyboard control
function

Output and measure voltage and displacement, spontaneous waveform, selection function, set parameters

Spontaneous waveform

Sine wave, square wave, triangle wave, sawtooth wave

Software control function

Output and measure voltage and displacement, waveform control, selection function, set parameters

Software waveform control

Programmable waveform output, standard waveform output

Secondary development

VC++, Matlab, LabView routine and DLL dynamic link library function, easy for development

Operating temperature

0~50℃

Chassis & power supply module

Power supply

AC 220V±10％，50Hz±10％

Current limit

Short-circuited proof

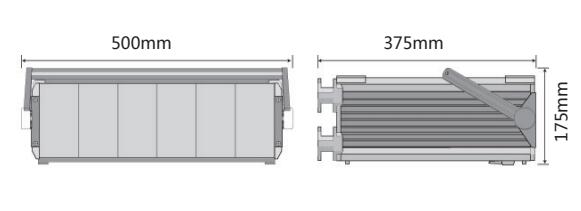

L×H×D

500×175×375mm

Function

Basic control way

Manual adjustment, analog input, computer serial/USB interface, spontaneous waveform control, open-loop/servo control
