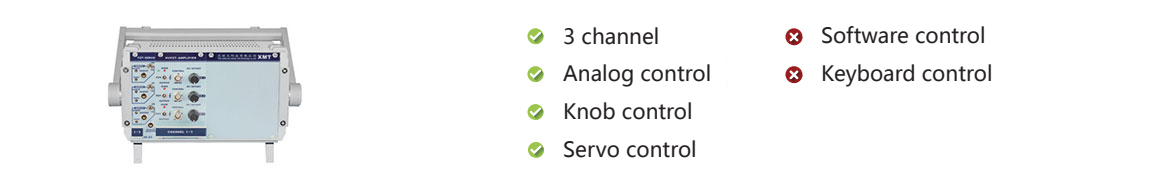

Characteristics

3 channel

Analog control

Knob control

Servo control

Technical Data
Type		E01.B3（E03 module）
Power amplifier module	Channels	3
	Contol analog input	-1.67~10V（Optional 0~5V）
	Output voltage	-20~120V（Optional -20~150V）
	Ripple	5mV
	Voltage stability	＜ 0.1%F.S./8hours
	Input impedance	100KΩ±20%
	Bandwidth	10kHz（Optional 30k, 50kHz, etc.）
	Ave.current	58mA
	Peak current	1A
	Bandwidth (1/10 signal)	>20kHz
	Voltage gain	12
	Knob adjustment	10 turns
PZT sensor control module	Sensor type	SGS（Optional LVDT, CAP）
	Sensor channels	3
	Servo	Analog P-I+notch filter
	Sensor port	ERA.0S.304.CLL
	Sensor output port	ERA.0S.303.CLL
	Output voltage	0~10V
	Operating temperature	0~50℃
Chassis & power supply module	Power supply	AC 220V±10％，50Hz±10％
	Current limit	Short-circuited proof
	L×H×D	280×175×375mm
Function	Basic control way	Manual adjustment, analog control, Open-loop/Servo control

Drawings（Click on the picture to enlarge it）
