E01.A3 Piezo Amplifier（E05 module）Current Location：Product Homepage >> Modular piezo controller>>E01.A3 Piezo Amplifier（E05 module）

CoreMorrow E01.A3 Piezo Amplifier with -20 to 150V output

Introduction
Feedback

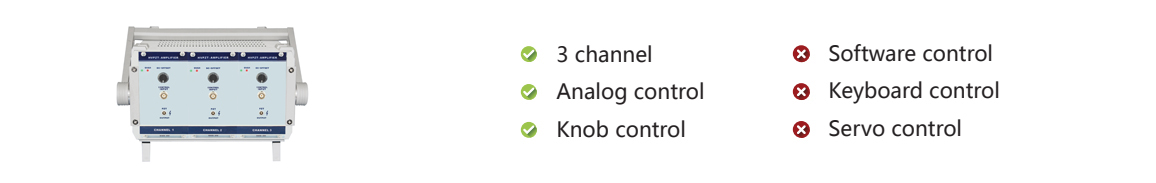

Characteristics

3 channel

Analog control

Knob control

Technical Data
Type		E01.A3（E05 module）
Power amplifier module	Channels	3
	Contol analog input	-1.67~10V（Optional 0~5V）
	Output voltage	-1.67~10V（Optional 0~5V）
	Ripple	5mV
	Voltage stability	＜ 0.1%F.S./8hours
	Input impedance	100KΩ±20%
	Bandwidth	10kHz（Optional 30k, 50kHz, etc.）
	Ave.current	291mA
	Peak current	1A
	Bandwidth (1/10 signal)	>20kHz
	Voltage gain	12
	Knob adjustment	10 turns
Chassis & power supply module	Power supply	AC 220V±10％，50Hz±10％
	Current limit	Short-circuited proof
	L×H×D	280×175×375mm
Function	Basic control way	Manual ajustment, analog control

Drawings（Click on the picture to enlarge it）

Click on the picture to enlarge it

Downloads
Auto CAD PDF
Step
Specs Sheet
Manual	E01 User Manual	E00/E01 Series Piezo Controller
