E01.A1 Piezo Amplifier（E07 module，1000V）Current Location：Product Homepage >> Modular piezo controller>>E01.A1 Piezo Amplifier（E07 module，1000V）
CoreMorrow E01.A1 Piezo Amplifier outputing 1000V voltage
  • Introduction
  • Feedback

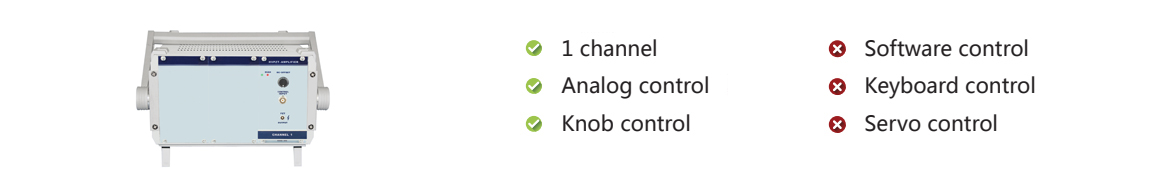

Characteristics


 1 channel

 Analog control

 Knob control


    Technical Data

Type

E01.A1(E07 module,1000V)

Power amplifier module

Channels

1

Contol analog input

0~10V

Output voltage

0~1000V

Ripple

50mV

Voltage stability

＜ 0.1%F.S./8hours

Input impedance

100KΩ±20%

Bandwidth

3kHz

Ave.current

20mA

Peak current

500mA

Voltage gain

100

Knob adjustment

10 turns

Chassis & power supply module

Power supply

AC 220V±10％，50Hz±10％

Current limit

Short-circuited proof

L×H×D

280×175×375mm

Function

Basic control way

Manual ajustment, analog control

     Drawings（Click on the picture to enlarge it）
Click on the picture to enlarge it
      Downloads
Auto CAD PDF
Step
Specs Sheet
Manual

E01 User Manual

E00/E01 Series Piezo Controller
