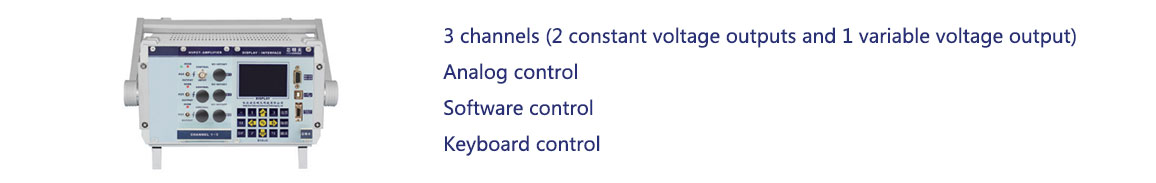

E03 power amplifier module×1： E03 power amplifier module×1(with constant voltage)：Its main function is to amplify small signal from external analog input or given by the computer through DA or other control signals through a voltage and power amplifier circuit inside the Power Amplifier Module.
|

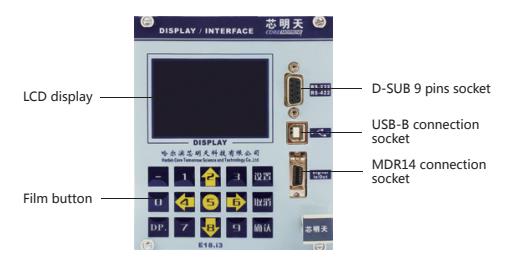

E18.i3 display & Interface module×1： With LCD and PC interface, E18 measures and displays the output voltage of Power Amplifier Module and the current displacement of sensor module, receives and processes control commands from computer, and with keyboard, LCD and is equipped software for human-computer interaction, and with servo control and other functions. It is not a stand-alone device and needs to be integrated into the E00/E01 chassis.
|
| Technical Data | |
|
Types |
E01.A3（E03 module） |
|
Power amplifier module |
|
|
Channels |
3 |
|
CH1 contol analog input |
-10V~+10V |
|
CH1 output voltage |
-100V~+100V |
|
CH2 output voltage |
+100V constant voltage |
|
CH3 output voltage |
-100V constant voltage |
|
Ripple |
5mV |
|
Voltage stability |
＜ 0.1%F.S./8hours |
|
Input impedance |
100KΩ±20% |
|
Bandwidth |
10kHz |
|
Ave.current |
35mA |
|
Peak current |
1A |
|
Bandwidth (1/10 signal) |
>20kHz |
|
Voltage gain |
10 |
|
Knob adjustment |
- |
|
Display & interface module |
|
|
Channels |
3 |
|
D/A converter |
16Bit±10V(optional 24 Bit±10V) |
|
Output voltage |
1/30000 |
|
A/D converter |
16Bit±10V |
|
Film botton |
15 buttons |
|
Communication port |
RS-232/422、USB |
|
Bandrate |
9600、19200、38400、57600、76800、115200 、128000、230400、256000 |
|
Output frequency |
10kHz |
|
I/O port |
1~3pcs, user can set the input or output, MDR14 connector |
|
LCD keyboard control function |
Output and measure voltage and displacement, spontaneous waveform, |
|
Spontaneous waveform |
Sine wave, square wave, triangle wave, sawtooth wave |
|
Software control function |
Output and measure voltage and displacement, waveform control, selection function, set parameters |
|
Software waveform control |
Programmable waveform output, standard waveform output |
|
Secondary development |
VC++, Matlab, LabView routine and DLL dynamic link library function, easy for development |
|
Operating temperature |
0~50℃ |
|
Chassis & power supply module |
|
|
Power supply |
AC 220V±10％，50Hz±10％ |
|
Current limit |
Short-circuited proof |
|
L×H×D |
280×175×375mm |
|
Basic control way |
Manual adjustment, analog input, computer serial/USB interface, |
