Characteristics

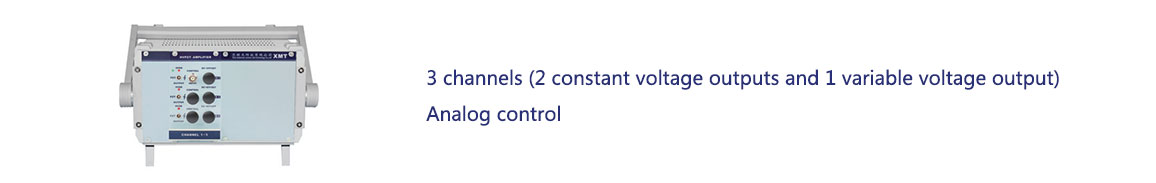

3 channels (2 constant voltage outputs and 1 variable voltage output) |
Analog control |
Voltage vs Frequency Curves |
Combination Modules E03 power amplifier module(with constant voltage)×1:Its main function is to amplify small signal from external analog input or given by the computer through DA or other control signals through a voltage and power amplifier circuit inside the Power Amplifier Module. |
Technical Data | |
Types |
E01.A3(E03 module) |
Power amplifier module |
|
Channels |
3 |
CH1 contol analog input |
-10V~+10V |
CH1 output voltage |
-100V~+100V |
CH2 output voltage |
+100V constant voltage |
CH3 output voltage |
-100V constant voltage |
Ripple |
5mV |
Voltage stability |
< 0.1%F.S./8hours |
Input impedance |
100KΩ±20% |
Bandwidth |
10kHz |
Ave.current |
35mA |
Peak current |
1A |
Bandwidth (1/10 signal) |
>20kHz |
Voltage gain |
10 |
Knob adjustment |
- |
Display & interface module |
|
Channels |
3 |
D/A converter |
16Bit±10V(optional 24 Bit±10V) |
Output voltage |
1/30000 |
A/D converter |
16Bit±10V |
Film botton |
15 buttons |
Communication port |
RS-232/422、USB |
Bandrate |
9600、19200、38400、57600、76800、115200 、128000、230400、256000 |
Output frequency |
10kHz |
I/O port |
1~3pcs, user can set the input or output, MDR14 connector |
LCD keyboard control function |
Output and measure voltage and displacement, spontaneous waveform, |
Spontaneous waveform |
Sine wave, square wave, triangle wave, sawtooth wave |
Software control function |
Output and measure voltage and displacement, waveform control, selection function, set parameters |
Software waveform control |
Programmable waveform output, standard waveform output |
Secondary development |
VC++, Matlab, LabView routine and DLL dynamic link library function, easy for development |
Operating temperature |
0~50℃ |
Chassis & power supply module |
|
Power supply |
AC 220V±10%,50Hz±10% |
Current limit |
Short-circuited proof |
L×H×D |
280×175×375mm |
Basic control way |
Manual adjustment, analog input, computer serial/USB interface, |
|
|
