E01.A36 Chassis-type Piezo Controller is a 36-channel power amplifier, its peak current is up to 1A, and bandwidth up to 10kHz.

Characteristics

Modular, 36 channels output

Ave.current to 30mA/channel

Peak current to 1A/channel

Bandwidth to 10kHz

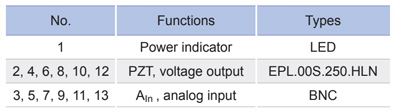

Front panel

Rear panel

Frequency vs Load Curve

Principle

Drawings（Click on the picture to enlarge it）

Click on the picture to enlarge it
Auto CAD PDF
Step
Specs Sheet
Manual
