Technical data

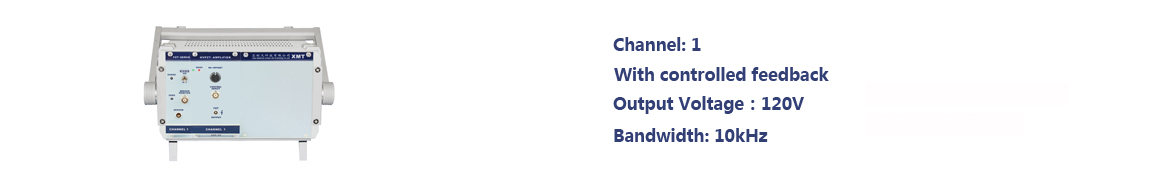

Models	E01.B1
Amplifier Module
Channels	1
Analog input range	0~10V
Output voltage	0~120V
Ripple	5mV
Voltage stability	<0.1%F.S./8 hours
Input impedance	100KΩ±20%
Unloaded full amplitude bandwidth	10kHz
Ave. Current mA	291mA
Peak current mA	1A
Bandwidth, small signal(1/10)	>20kHz
Voltage gain	10 turns
Knob adjustment	10 turns
Sensor Module
Sensor	SGS
Channels	1
Sensor port	ERA.0S.304.CLL
Sensor output port	BNC
Sensor output voltage	0~10V
Operating temperature	0~50℃
Chassis and Power Supply Module
Power supply	AC 220V±10％ 50Hz±10％
Current limit	Short circuit protection
L×H×D	280×175×375mm
Functions List
Basic control way	Manual adjustment, Analog input
Basic functions	Overcurrent protection, Overtemperature protection, dynamic power protection

Drawings（Click on the picture to enlarge it）
