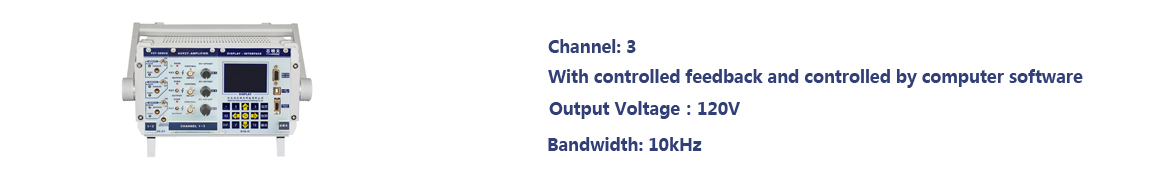

Models

E01.D3S

Amplifier Module

Channels

3

Analog input range

-1.67~10V（Optional 0~5V）

Output voltage

-20~120V（Optional -20~150V）

Ripple

5mV

Voltage stability

<0.1%F.S./8 hours

Input impedance

100KΩ±20%

Unloaded full amplitude bandwidth

10kHz

Ave. Current mA

58mA

Peak current mA

1A

Bandwidth, small signal(1/10)

>20kHz

Voltage gain

10 turns

Knob adjustment

10 turns

Sensor Module

Sensor

SGS

Channels

3

Sensor port

ERA.0S.304.CLL

Sensor output port

ERA.05.303.CLL

Sensor output voltage

0~10V

Operating temperature

0~50℃

Display and Interface Module

Channels

3

D/A converter

24Bit±10V

A/D converter

16Bit±10V

Output voltage resolution

1/1000000

Serial/USB Communication

RS-232/422, USB

Chassis and Power Supply Module

Power supply

AC 220V±10％ 50Hz±10％

Current limit

Short circuit protection

L×H×D

280×175×375mm

Functions List

Basic control way

Manual adjustment, Analog input, computer serial/USB interface, spontaneous waveform control

Basic functions

Overcurrent protection, dynamic power protection

Software configuration

Equipped with powerful standard computer control software

Spontaneous waveform

Optional sinusoidal, square wave, triangular wave, sawtooth wave, and the frequency not decay within 1kHz-10kHz

LCD keyboard

Standard (LCD, membrane button, RS-232, RS-422, USB)
